Wireless transmitter Remotus 12BD

FMhand-heldLCD display

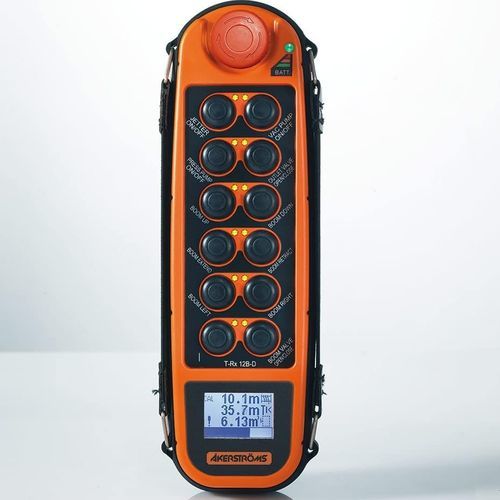

Remotus 12B is a robust handheld transmitter made for both indoor and outdoor environments. Remotus 12B has 12 two-stage buttons that provide up to 24 functions. The 12B is available with or without graphic display. The transmitter is very customizable, which makes it suitable for many applications, such as cranes and hoists, harbours and ferry terminals, pumps and winches. To handle fast and wide temperature swings, it is equipped with a diaphragm vent that releases any condensation. The 12B runs on both the general and the individual frequency bands and has distinct interchangeable symbols that can be made to order to meet the customer’s needs. Remotus 12B can be equipped with a 102×64-pixel graphic display, where up to four values with unit can be displayed simultaneously, numerically or as bars. The transmitter is equipped with a temperature-compensated battery indicator and warns when the battery level is low. A configuration information module (CIM) stores the transmitter’s configuration. That way, a transmitter’s configuration can be effortlessly moved to another transmitter, for example, when a reserve transmitter replaces the current transmitter. The CIM card is secured during operation but is easily accessible for service. *Technical data Functions: 12 two-stage buttons Temperature range: -25 to +55°C Radio frequency: 433-434 MHz; 406-470 MHz; 2.4 GHz Output power: 1-400 mW Antenna: Internal Battery: 3.7 V / 1.9 Ah Protection class: IP65 Dimensions: 243 x 77 x 41 mm Weight: 490 g Display: Graphic LCD, 102x64 pixels
