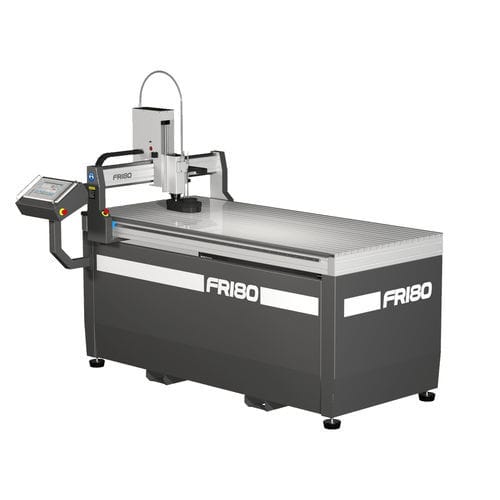

3-axis CNC milling machine FR 180verticalISO 9001laser
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Certifications
- ISO 9001
- Other characteristics
- laser
- X travel
1,500 mm
(59 in)- Y travel
720 mm
(28 in)- Z travel
120 mm
(5 in)- Power
1,050 W
(1.43 hp)- Overall length
1,900 mm
(74.8 in)- Overall width
950 mm
(37.4 in)
Description
Economical small-format model ideal for the professional. Robust and very easy to use with very low maintenance, characteristics of the entire FR series. Useful working area of 1500 x 720 mm and height of 120mm.
Steel and aluminium frame.
Ribbed aluminium table.
Electronics with RTA drivers and class 6 robotics wiring.
TexComputer CNC control system with touch screen.
Linear guides with self-lubricating, sealed, backlash-free recirculating ball bearing slides.
HTD3M belt drive and 30Kg/cm PaP motors.
Travelling speed 40 metres/min.
Resolution 0,02mm.
Chip suction system.
Probe for Z-axis zero setting.
Laser pointer for X,Y axis zero setting verification.
