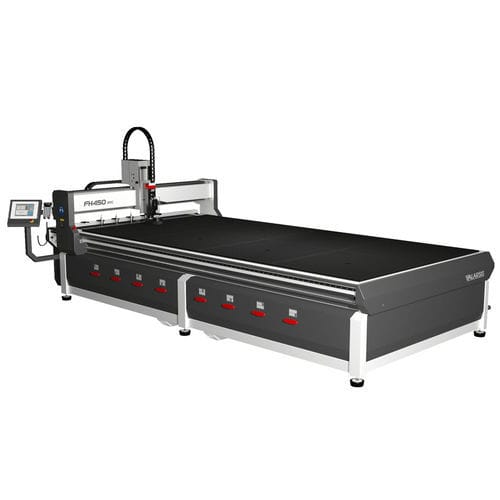

3-axis CNC milling machine FH 450verticalISO 9001precision
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Certifications
- ISO 9001
- Other characteristics
- precision, laser
- X travel
405 cm
(159 in)- Y travel
202 cm
(80 in)- Z travel
150 mm
(6 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 6,000 rpm
(37,699 rad.min-1)- Power
5 ch, 7 ch
(5 hp, 7 hp)- Overall length
480 cm
(189 in)- Overall width
245 cm
(96.5 in)
Description
Large production model for machining operations where both power and precision are required at high workloads. Ideal for the carpentry and sign industry, with tubular steel chassis, very robust and low maintenance, characteristics of the entire FH series. Useful working area of 400 x 200 cm and height of 150mm.
Welded tubular steel frame.
Vacuum table with 6 sectors and 7CV pump.
Electronics with RTA drivers and class 6 robotics wiring.
TEXCOMPUTER touch screen controller.
Linear guides with self-lubricating, sealed and backlash-free recirculating ball bearing slides.
Spindle transmission on all axes, with preloaded recirculating ball nuts and 70Kg/cm torque SanyoDenky servo motors.
Travelling speed 20 metres/min.
Adjustable resolution 0,001mm.
Chip suction system.
Probe for Z-axis zero setting.
Laser pointer for X,Y axis zero setting verification.
