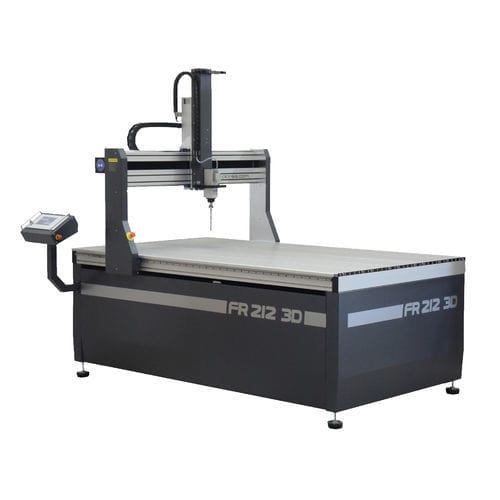

3-axis CNC milling machine FR 212 3DverticalgantryISO 9001
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Certifications
- ISO 9001
- Other characteristics
- high-speed, compact
- X travel
2,000 mm
(79 in)- Y travel
1,200 mm
(47 in)- Z travel
250 mm
(10 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
1.5 ch
(1.5 hp)- Overall length
2,400 mm
(94.5 in)- Overall width
1,500 mm
(59.1 in)
Description
Economical model for the professional who requires simplicity and versatility in 3D foam modelling, very easy to use and compatible with all CAD/CAM programs. Very robust and low maintenance, characteristics of all the FR series, with 1.5 HP Brushless motor. Useful working area of 200x120cm and height of 250mm.
Aluminium and steel frame.
Grooved aluminium table.
CNC TexComputer touch screen control.
Linear guides with self-lubricating recirculating ball bearing slides, watertight and play-free.
backlash free.
X Y axis transmission with HTD3M pitch inextensible belts, and 30Kg/cm PaP motors.
Z axis transmission with recirculating ball screw.
Travelling speed 30 metres/min.
Resolution 0,02mm.
Optional chip suction system
Probe for Z-axis zero setting.
Laser pointer for X,Y axis zero setting verification.
