Peristaltic pump ALH50
waterfor chemicalsfor food products

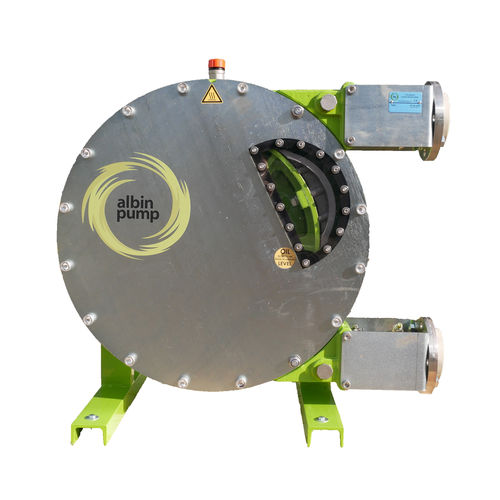

Peristaltic pump - ALH50 - Albin Pump - water / for chemicals / for food products
Peristaltic pump - ALH50 - Albin Pump - water / for chemicals / for food products
Peristaltic pump - ALH50 - Albin Pump - water / for chemicals / for food products - image - 2
Peristaltic pump - ALH50 - Albin Pump - water / for chemicals / for food products - image - 3
Add to favorites
Compare this product
Go to the Albin Pump website for more information

Characteristics

Technology
peristaltic
Fluid
water, for chemicals, for food products, lubricating oil, for biogas, grout, for cement, for self-leveling floor screed, plaster, foam concrete
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
for the food industry, industrial, for the chemical industry, for hydraulic fracturing, for renewable energy, butter production line, for water treatment, fish farming, agriculture, for the mining industry, sanitary, for public works, for the construction industry, for the automotive industry, for the printing industry, for the cosmetics industry, for the paper industry, for the textile industry, for the biotechnology industry, for methanizers, for the glass industry
Applications
transfer, high-pressure, metering, for harsh environments, for harsh environments, suction
Material
stainless steel, cast iron, aluminum, plastic, steel, PTFE, polypropylene, metal
Fluid specification
for solids-laden fluids, for aggressive media, for abrasive fluids, for viscous fluids, for high-viscosity fluids, for corrosive fluids, for fluids with lubricating properties, for brine, for low-viscosity fluids, dye, cutting fluid, for mineral oil, for hazardous fluids, for used oil, for engine oil, for toxic fluids, for heavy fluids
Protection level
chemical-resistant, abrasion-resistant, explosion-proof, with integrated safety, intrinsically safe, corrosion-resistant, IP55, explosion-proof, rugged, rugged, standard
Other characteristics
high-efficiency, no-clog, custom, easy tube loading, integrated-drive, high-reliability, multiphase, floor-mounted, for fluids, low-flow, fixed-flow, adjustable-flow, high-flow, rotary, tank-mounted, high-capacity, horizontal mount, heavy-duty, high-performance, with tank, medium-capacity, custom-made, in-line, for packaging machines, ball bearing, seal-less, medium-flow, with detector, with gear reducer, variable-speed, oil-free, low-NPSH, large, small, low-pressure, continuous-flow, with speed controller, bi-directional, heavy-duty, with frequency converter, base-mounted, variable-flow, small-size, low-vibration, medium-sized, for protective coverings, fixed-displacement, fixed-speed, self-adjusting, lubricated, with stand, flange, stand-alone, low-noise
Flow

Max.: 15.8 m³/h
(557.97173 ft³/h)

Min.: 3 m³/h
(105.944 ft³/h)

Pressure

Max.: 15 bar
(217.557 psi)

Min.: 1 bar
(14.504 psi)

Head

9.8 m
(32'01" )

Power

Max.: 15 kW
(20.39 hp)

Min.: 2.2 kW
(2.99 hp)

Fluid temperature

Max.: 135 °C
(275 °F)

Min.: -35 °C
(-31 °F)

Input diameter

60.3 mm
(2.374 in)

Output diameter

60.3 mm
(2.374 in)

Width

878 mm
(34.57 in)

Height

802 mm
(31.57 in)

Weight

315 kg
(694.46 lb)

Description

HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP - Volumetric flow up to 15,8 m3/h (70 gpm) - No mechanical seal or stuffing box - Robust, entirely of ductile iron - Suitable for aggressive or viscous fluids - Dosing of very corrosive chemicals - Fully self-priming up to 9.8 m - Damage-free continuous dry running - Outlet pressures up to 15 bar (220 psi) - Very easy maintenance - Stainless steel screws - Heavy-duty bearings, greased for life - Two-year warranty - Plug and Play - Perfect volumetric flow - Reversible flow - Close coupled with gearbox protection - Low sound level: :< 70 dB at 1 meter Typical applications : WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids CERAMIC : ceramic glaze, mould filling, filter press feeding BUILDING : fibrous mortar, plaster, light concrete, cement flooring CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine. PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
