Peristaltic pump ALHX40waterfor chemicalsfor food products
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals, for food products, lubricating oil, for biogas, grout, for cement, for self-leveling floor screed, plaster, foam concrete
- Operation
- electric
- Priming
- self-priming
- Technology
- peristaltic
- Mobility
- stationary
- Domain
- industrial, for the chemical industry
- Applications
- irrigation, transfer, metering, process, sump, high-volume, medium-pressure, for pumping stations, dual dispensing, descaling, chemical process, treatment, for self-leveling floor screed, unloader, discharge, for hazardous locations, trial, for farm machinery, sanitation, circulation, for high-pressure applications, for industrial applications, suction, sewage, distribution, for machinery, dewatering, for harsh environments, for power stations, loading, for containers, filling, washing, cleaning, unloading, for printing machines, for reverse osmosis, recirculation, fermentation, volumetric dispensing, drying, for high-temperature applications, injection
- Material
- stainless steel, cast iron, aluminum, plastic, steel, PTFE, polypropylene, metal, PVDF
- Fluid specification
- for corrosive fluids, for solids-laden fluids, for aggressive media, for abrasive fluids, for heavy fluids, for fluids with lubricating properties, for viscous fluids, for high-viscosity fluids, for hot oil, dye, for brine, for low-viscosity fluids, cutting fluid, for mineral oil, for hazardous fluids, for used oil, for engine oil, for toxic fluids
- Voltage
- 380 V
- Protection level
- chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, with integrated safety, hazardous-duty, ATEX, corrosion-resistant, robust, IP55
- Other characteristics
- high-efficiency, suction, rugged, for protective coverings, open, medium-sized, horizontal mount, heavy-duty, high-performance, heavy-duty, for packaging machines, with stand, large, medium-flow, flange, seal-less, low-vibration, no-clog, with gear reducer, with pressure controller, low-capacity, with detector, fixed-flow, custom, self-adjusting, adjustable-flow, standard, high-reliability, rugged, with speed controller, high-capacity, floor-mounted, easy tube loading, with pulsation damper, base-mounted, low-flow, corrosion-proof, low-pressure, rugged, continuous-flow, ball bearing, with frequency converter, tank-mounted, rotary, variable-speed, stand-alone, medium-capacity, lubricated, custom, fixed-speed, variable-flow, high-flow, fixed-displacement, with variable-speed controller, multiphase, low-noise, low-NPSH, bi-directional, in-line, oil-free, adjustable, integrated-drive, for fluids
- Flow
Min.: 1 m³/h
(35.31467 ft³/h)Max.: 9.6 m³/h
(339.0208 ft³/h)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 15 bar
(217.557 psi)- Head
9.8 m
(32'01" )- Power
Min.: 2.2 kW
(2.99 hp)Max.: 4 kW
(5.44 hp)- Input diameter
48.3 mm
(1.902 in)- Output diameter
48.3 mm
(1.902 in)- Height
616 mm
(24.25 in)- Weight
210 kg
(462.97 lb)
Description

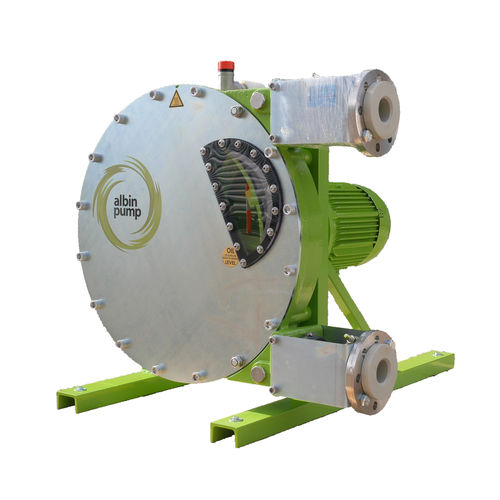

HIGH PRESSURE (ALH) PERISTALTIC HOSE PUMP - ALBIN PUMP
- Volumetric flow up to 9,6 m3/h (42 gpm)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 15 bar (220 psi)
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications:
WATER TREATMENT: lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING: sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC: ceramic glaze, mould filling, filter press feeding
BUILDING: fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY: various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY: tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY: water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS: latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ: manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
