Peristaltic pump ALH25for biogaswaterfor chemicals
Add to favorites
Compare this product
Characteristics
- Fluid
- for biogas, water, for chemicals, slurry, for food products, oil, grout, for cement, for self-leveling floor screed, plaster, foam concrete
- Operation
- electric
- Priming
- self-priming
- Technology
- peristaltic
- Mobility
- stationary, mobile
- Domain
- for the chemical industry, industrial, for the food industry, for water treatment, agriculture, for the mining industry, for the construction industry, for public works, fish farming, for the cosmetics industry, for maritime applications, for the paper industry, for the automotive industry, for the textile industry
- Applications
- discharge, transfer, high-pressure, for self-leveling floor screed, for pumping stations, recirculation, for reverse osmosis, volumetric dispensing, metering, unloading, for industrial applications, cleaning, for harsh environments, trial, process, circulation, cooling, irrigation, for hazardous locations, sanitation, vehicle equipment, for farm machinery, suction, dewatering, filling, chemical process, sump, treatment, washing, injection
- Material
- stainless steel, cast iron, aluminum, plastic, PTFE, steel, polypropylene, metal
- Fluid specification
- for abrasive fluids, for aggressive media, for solids-laden fluids, for viscous fluids, for high-viscosity fluids, for heavy fluids, for corrosive fluids, coagulant, for low-viscosity fluids, for brine, dye, cutting fluid, for mineral oil, for used oil, for fluids with lubricating properties, flavouring
- Protection level
- chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, hazardous-duty, ATEX, corrosion-resistant, robust
- Other characteristics
- dry, horizontal mount, suction, multiphase, variable-flow, with pulsation damper, floor-mounted, high-efficiency, rugged, ball bearing, with frequency converter, integrated-drive, stand-alone, low-NPSH, heavy-duty, fixed-speed, seal-less, direct-drive, variable-speed, fixed-displacement, medium-flow, high-reliability, rugged, lubricated, skid-mounted, coated, low-noise, in-line, heavy-duty, with speed controller, flange, corrosion-proof, easy tube loading, base-mounted, for protective coverings, adjustable-flow, bi-directional, with stand, continuous-flow, for fluids, transportable, with gear reducer
- Flow
Max.: 2.2 m³/h
(77.69227 ft³/h)Min.: 0.3 m³/h
(10.5944 ft³/h)- Pressure
Max.: 15 bar
(217.557 psi)Min.: 1 bar
(14.504 psi)- Power
Max.: 2.2 kW
(2.99 hp)Min.: 1.1 kW
(1.5 hp)- Weight
Max.: 85 kg
(187.39 lb)Min.: 80 kg
(176.37 lb)
Description

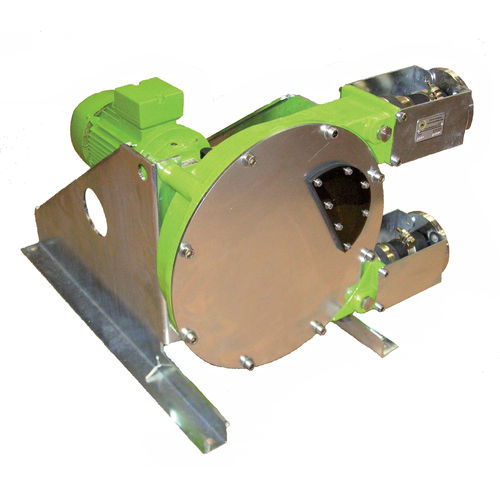

HIGH PRESSURE (ALH) PERISTALTIC PUMP - ALBIN PUMP
- Volumetric flow up to 2,2 m3/h (10 gpm)
- No mechanical seal or stuffing box
- Robust, entirely of ductile iron
- Suitable for aggressive or viscous fluids
- Dosing of very corrosive chemicals
- Fully self-priming up to 9.8 m
- Damage-free continuous dry running
- Outlet pressures up to 15 bar
- Very easy maintenance
- Stainless steel screws
- Heavy-duty bearings, greased for life
- Two-year warranty
- Plug and Play
- Perfect volumetric flow
- Reversible flow
- Close coupled with gearbox protection
- Low sound level: :< 70 dB at 1 meter
Typical applications :
WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC : ceramic glaze, mould filling, filter press feeding
BUILDING : fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
