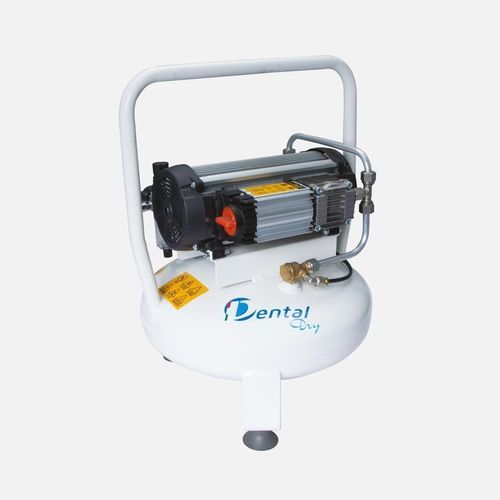

Piston compressor DD09 seriesairelectricportable
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- portable
- Lubrication
- oil-free
- Application domain
- for dental applications
- Voltage
- 380 V
- Other characteristics
- with tank
- Tank volume
9 l
(2.4 gal)- Pressure
9 bar
(130.53 psi)- Flow
87 l/min, 175 l/min
(22.98 us gal/min, 46.23 us gal/min)- Power
0.62 kW
(0.84 hp)- Length
340 mm
(13.39 in)- Width
510 mm
(20.08 in)- Height
340 mm
(13.39 in)- Weight
16 kg, 18 kg
(35.3 lb, 39.7 lb)- Noise level
67 dB, 70 dB
Description
The single-cylinder and two-cylinder units of the MiniTop series belong to the Oil-less category, which means that the motor of the air compressor operates without oil. This model, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting rod, which is placed on a pillow block that is lubricated for life with a special grease for use with high temperatures.
