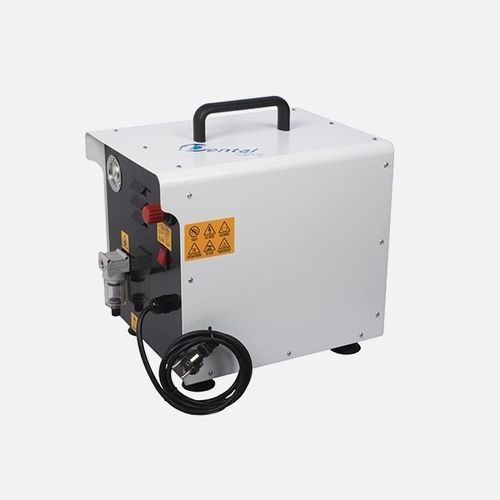

Piston compressor SL1airelectricportable
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- portable
- Lubrication
- oil-free
- Application domain
- for dental applications
- Voltage
- 380 V
- Other characteristics
- low-noise, with tank
- Tank volume
2 l
(0.5 gal)- Pressure
9 bar
(130.53 psi)- Flow
175 l/min
(46.23 us gal/min)- Power
0.62 kW
(0.84 hp)- Length
390 mm
(15.35 in)- Width
305 mm
(12.01 in)- Height
350 mm
(13.78 in)- Weight
19.2 kg
(42.3 lb)- Noise level
60 dB
Description
The single-cylinder and two-cylinder units of the MiniTop series belong to the Oil-less category, which means that the motor of the air compressor operates without oil. This model, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting rod, which is placed on a pillow block that is lubricated for life with a special grease for use with high temperatures.
Catalogs
COMPRESSORS FOR DENTISTS
16 Pages
