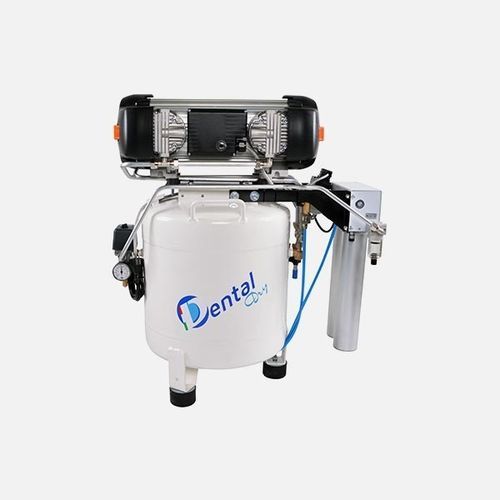

Piston compressor DD50 seriesairelectricportable
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- portable
- Lubrication
- oil-free
- Application domain
- for dental applications
- Voltage
- 380 V
- Other characteristics
- tank-mounted
- Tank volume
30 l, 50 l
(7.9 gal, 13.2 gal)- Pressure
9 bar
(130.53 psi)- Flow
270 l/min, 360 l/min
(71.33 us gal/min, 95.1 us gal/min)- Power
1.5 kW, 1.8 kW
(2.04 hp, 2.45 hp)- Length
550 mm, 570 mm
(21.65 in, 22.44 in)- Width
490 mm, 520 mm
(19.29 in, 20.47 in)- Height
810 mm, 930 mm
(31.89 in, 36.61 in)- Weight
57.5 kg, 61.5 kg
(126.8 lb, 135.6 lb)- Noise level
66 dB, 72 dB
Description
This model of air compressor, of the “Rocking Piston”-type, is composed of a sliding piston placed inside a cylinder (thermally treated) and mounted on a connecting rod, which is placed on a pillow block that is lubricated for life with a special grease for use with high temperatures.
