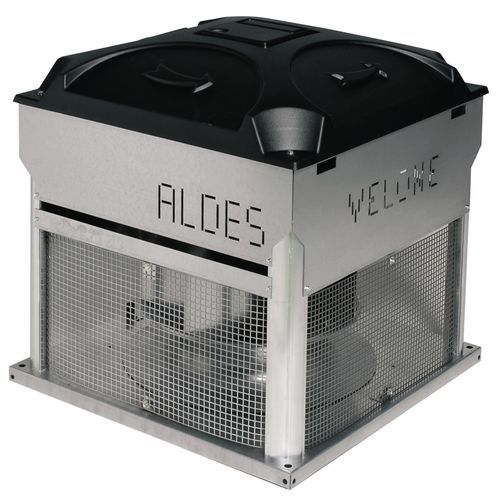

IP55 fan VELONE® verticalrooftopcentrifugal
Add to favorites
Compare this product
Characteristics
- Type
- rooftop, vertical, IP55
- Configuration
- centrifugal
- Function
- exhaust, fume exhaust, ventilation
- Supply voltage
- AC, 400VDC
- Material
- galvanised steel
- Applications
- industrial, commercial, for outdoor use, for laboratory
- Other characteristics
- compact, backward curved
- Air flow
Max.: 27,000 m³/h
(953,496.001 ft³/h)Min.: 100 m³/h
(3,531.467 ft³/h)- Diameter
332 mm
(13.071 in)- Rotational speed
1,000 rpm, 1,500 rpm
(6,283 rad.min-1, 9,425 rad.min-1)
Description
Velone – Smoke exhaust roof fans
CE marking-compliant.
F400 Class (400 °C – 120 min) in accordance with EN 12101-3.
Airflow range up to 27,000 m3/h.
Compact to protect against impacts and weather.
ALL-IN-ONE option (built-in relay box and delivered pre-wired, pressure switch and switch supplied and wired).
Optional electrical accessories pre-wired in factory and fitted inside.
Optional aeraulic connection of pressure switch in factory.
Accessories available:
IPX4 certified rain protection kit.
Pivoting shaft for easy cleaning.
Backdraft damper.
10 roof fan sizes, 500 to 27,000 m3/h.
Base and motor frame made of galvanised steel, ABS cap fastened by 4 quick-fit screws.
Backward curve impeller made of galvanised steel.
Class F / IP55 electric motor.
1-speed or 2-speed motor (independent 4/6 pole windings and Dahlander 4/8 pole coupling).
Protective grille made of galvanised steel.
Certain models available in 60 Hz version
