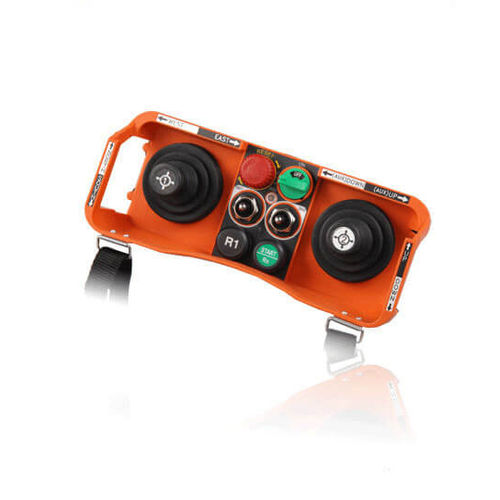

Joystick remote control SAGA1-L40

radiowith emergency stopIP65

Description CHARACTERISTICS OF THE TRANSMITTER: · Dimensions: 230 x 95 x 110 mm · Weight: 870g (with batteries) · Food: 4 AA alkaline batteries. CHARACTERISTICS OF THE RECEIVER: · Dimensions: 253 x 267 x 150 mm · Weight: 2400g (with cable) · Rele: Max. 40 Rele on commands (programmable) · Power supply: 24/48/110/220/380 VAC; 14 ~ 40VDC SPECIFICATIONS: · Frequency control: “Crystal”. · I.D. Code: 2; more than 4 billion combinations (set on production, never strays) · Operating temperature: -45 ~ + 80 ℃ · Range: up to 100 meters · Hamming distance: ≧ 4 · Three-level indicator light. · One of the axes of the joystick can be programmed to a maximum of 16 relays · Body Material: Fiberglass. · Moisture / dustproof / shockproof IP65 housing. · Programmable features. Modern radio control crane, with programmable features. The device has an elegant design and no external transmitter antenna (internal antenna). SAGA1-L40 has the ability to install both inside the electrical cabinet and outside, is fixed to 4 special metal bolts with shock absorbers (supplied). The device uses to transmit the signal, the frequency resonator “Quartz”. To ensure signal encryption and create security of use, the signal is encrypted with a special ID code (set by the manufacturer and has more than 4 billion combinations that never repeat). The SAGA1-L40 uses a modern coding system.
