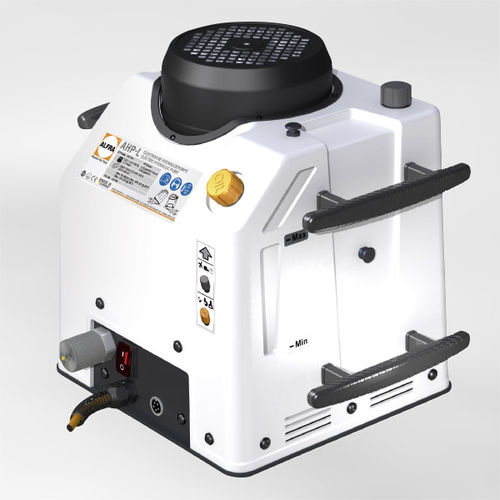

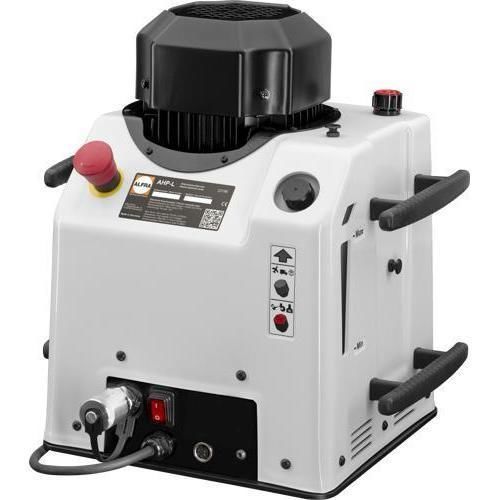

Electrically-powered hydraulic power unit AHP-L

electric motorlow-noiseportable

Product overview
With a pressure of 700 bar and a maximum flow rate of 1.7 l/min, the AHP-L ensures high-speed punching with ALFRA/Rittal Automation Systems hydraulic punching frames even during continuous operation. An additional fan prevents overheating in warmer regions. Thanks to its compact design, this drive unit can be used in demanding working environments. Extra-large non-slip carrying handles ensure safe handling and allow the power cable to be wound neatly. The housing is made of impact-resistant plastic for long service life. The AHP-L operates at 67 dB(A), considerably quieter than pumps with comparable performance.

Technical data (table)
Prod.-No.: 23196
Max. pressure: 700 bar
Max. flow rate: 1.7 l/min; 0.45 gal/min
Tank capacity: 2.5 l
Rated power: 2.2 kW
Rated current @ 700 bar: 12 A
Noise emission: 67 dB(A)
Weight (without accessories): 46 kg

Characteristics / technical specifications

• Product number: 23196
• Maximum pressure: 700 bar
• Maximum flow rate: 1.7 l/min (0.45 gal/min)
• Tank capacity: 2.5 l
• Rated power: 2.2 kW
• Rated current at 700 bar: 12 A
• Noise emission: 67 dB(A)
• Weight (without accessories): 46 kg
• Additional fan for continuous operation in warmer regions
• Compact design for use in demanding working environments
• Extra-large non-slip carrying handles; power cable can be wound on handle
• Housing made of impact-resistant plastic
