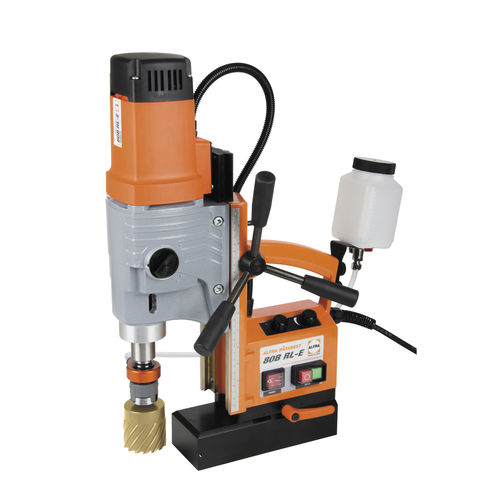

Magnetic drill RB 80 B RL-E
electricvariable-speedhigh-performance

magnetic drill
magnetic drill
magnetic drill
magnetic drill
magnetic drill
Add to favorites
Compare this product


Characteristics

Type
magnetic
Power source
electric
Other characteristics
variable-speed, high-performance
Rotational speed

Min.: 50 rpm
(314.2 rad.min-1)

Max.: 385 rpm
(2,419 rad.min-1)

Power

1,800 W

Voltage

110 V, 230 V

Drilling diameter

Min.: 12 mm
(0.47 in)

Max.: 80 mm
(3.15 in)

Description

Robust meets versatile - our devices, belonging to the Alfra basic line with right/left run function are combining all performance features of efficient metal core drilling with user friendlyness and additional application possibilities. Metalworkers will soon no longer want to do without the RB 80 B RLE as a perfect tool for core drilling, tapping, countersinking and spiral drilling. This high-performance device can be combined with core drills up to a diameter of 80 mm, with step drills up to a diameter of 55 mm and with twist drills up to a diameter of 32 mm. With a tap you can cut threads for screws up to M30 (using a thread cutting device). We recommend using a tapping chuck for screws up to M 30. The RB 80 B RLE is based on the principle 'everything at a glance'. The clear operating concept is virtually self-explanatory. Mistakes or application errors are almost impossible.
