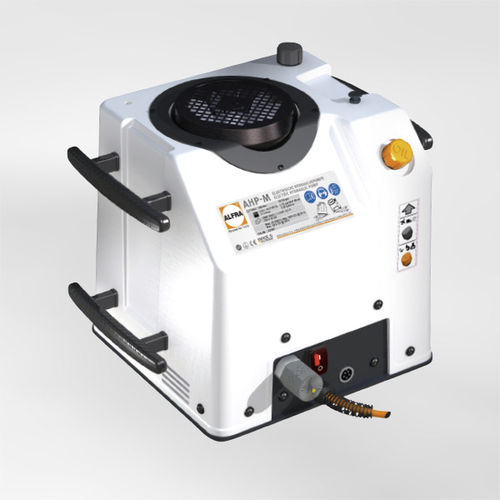

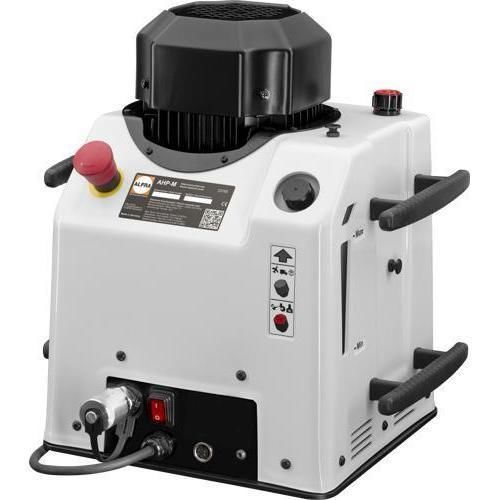

Hydraulic piston pump AHP-M

electricfor toolshandling

Overview
The ALFRA electric hydraulic pump AHP-M is a high-performance drive unit developed for use with hydraulic punching clamps such as the APS 70 and APS 120. With a maximum pressure of 700 bar and an operational flow of 1.1 l/min, the AHP-M is suited to demanding continuous operation. An additional fan prevents overheating in hot working conditions. Extra-large, non-slip carrying handles (which can be used to wind the mains cable) improve handling and transport. The unit operates at 67 dB(A), significantly quieter than pumps of comparable output.

Technical data (table)
Prod.-No.: 23195
Max. pressure: 700 bar
Max. flow rate: 1.0 l/min (table) — 1.1 l/min (operational)
Tank capacity: 2.5 l
Rated power: 1.1 kW
Rated current @ 700 bar: 7 A
Noise emission: 67 dB(A)
Weight (without accessories): 41 kg

Features / specifications

• Product number: 23195
• Max. pressure: 700 bar
• Max. flow rate: 1.0 l/min (table) — 1.1 l/min (operational)
• Tank capacity: 2.5 l
• Rated power: 1.1 kW
• Rated current @ 700 bar: 7 A
• Noise emission: 67 dB(A)
• Weight (without accessories): 41 kg
