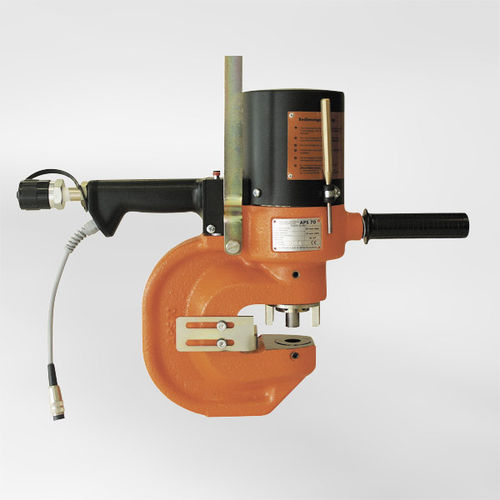

Semi-automatic punching unit APS 70
hydraulicfor metal sheetssingle-punch

semi-automatic punching unit
semi-automatic punching unit
Add to favorites
Compare this product

Characteristics

Control
semi-automatic
Drive type
hydraulic
Product handled
for metal sheets
Other characteristics
single-punch, portable

Description

Hydraulic Punching Unit with automatic return by means of neoprene spring Technical data: -max. hole Ø mm 22 mm -Oblong holes max. 22 x 14 mm -max. material thickness with St. 42 13 mm -Total punching time with pump SC 05 II B 10 sec. with pump SC 17 4 sec. -Throat depth 70 mm -max. pressure 700 kg/cm2 (10000 psi) -Punching force 30 t -Punch stroke 18 mm -Weight 29.9 kg Scope of Supply: punching unit, control cable, hydraulic hose 5 m, spanner, 1 punch and die each, Ø 18 mm, 1 depth fence, 1 suspension bracket
