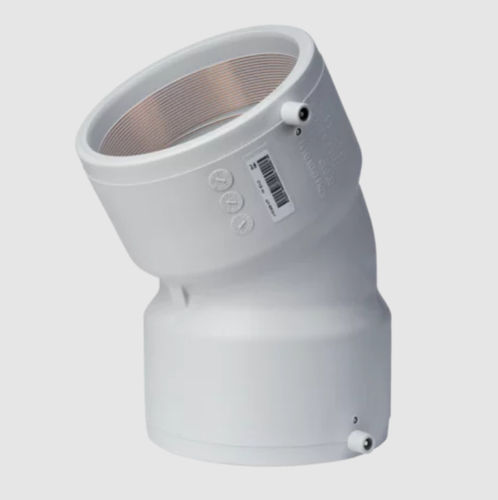

45° pipe elbow ABM

90°15°30°

Sewage bend (coupler/coupler) ABM Low space requirement through compact design The elbow gradations 15°, 30°, 45° enable comfortable services routing Couplers integrated on both sides to reduce assembly time with safety technology The smooth and hydraulically optimised internal contour provides a equal-base passage when utilising SDR 17/17.6 pipes Bright surface finish for optimum visibility when driving through with a camera With pin indicator for visual inspection of the fusion Sewage pipe systems are high-value assets of a value which has to be maintained for a long time. Increasing demands on the public sewage system require materials which meet these criteria. HDPE sewage pipes have been fused for many years with the FRIAFIT HDPE sewage system tightly, frictionlocked and root-proof. AREAS OF APPLICATION The FRIAFIT elbows ABM and ABMS d 160/DN 150 are used for change of direction in sewage and combined sewage water connection lines. The types ABM (coupler/coupler) or ABMS (coupler/pipe spigot) and the angle spacings 15°, 30° and 45° facilitate a comfortable piping configuration. Angles of 60°, 90° etc. can be produced by using multiple elbows. The FRIAFIT elbow ABMS is specifically suited for direct fusion into the FRIAFIT sewage saddle ASA-TL. The FRIAFIT elbows ABM and ABMS have a smooth, hydraulically optimised internal contour for sewage water draining and offer a level passage when used with pipes SDR 17/17.6. The bright surface facilitates an optimal view during camera inspection. The material used is stabilised against UV radiation. NOTES ON PROCESSING The connection of the pipes and fittings with FRIAFIT elbows by FRIAFIT fusion
