vector control variable-speed drive / vertical / HVAC / industrial
PowerFlex® 70 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

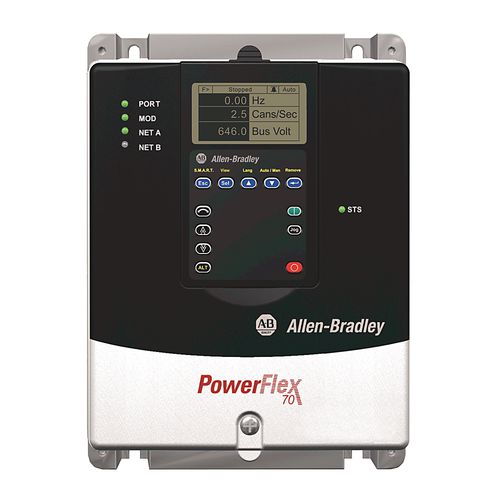

vector control variable-speed drive vector control variable-speed drive - PowerFlex® 70 series
{{requestButtons}}

Characteristics

  • Type:

    vector control

  • Mounting:

    vertical

  • Applications:

    HVAC, industrial

  • Protection class:

    IP54

  • Other characteristics:

    compact, torque control, IP20

  • Power:

    Max.: 37,000 W

    Min.: 370 W

  • Current:

    Max.: 72 A

    Min.: 1 A

Description

PowerFlex® 70 AC Drives are compact packages of power, control, and operator interface designed to meet demands for space, simplicity, and reliability. These drives provide a broad spectrum of features that help you to easily integrate them into your architecture and configure them for most application needs.

Features
• Power Ratings
• 200…240V: 0.37…18.5 kW / 0.5…25 Hp / 2.2…70 A
• 380…480V: 0.37…37 kW / 0.5…50 Hp / 1.1…72 A
• 500…600V: 0.5…50 Hp / 0.9…52 A
• IP20 NEMA/UL Type 1, Flange Mount, IP54 NEMA/UL Type 12, IP66 NEMA/UL Type 4X/12 for indoor use
• Zero Stacking™ Drives allowable with no reduction of ambient temperature rating (50 °C for IP20, NEMA/UL Type 1 and Flange Mount; 40 °C for IP66, NEMA/UL Type 4X/12)
• Wall or machine mount
• V/Hz control, sensorless vector control, Vector Control with FORCE™ Technology
• Common Industrial Protocol (CIP™) including DeviceNet™, ControlNet™, and EtherNet/IP™
• Speed and torque control with and without encoder feedback
• Advanced bus regulation and drive overload protection
• Supports multiple languages
• Configuration and programming via integral LCD keypad, remote keypad, or software
• Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time

Available Safety Options
• Safe Torque-Off option is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
