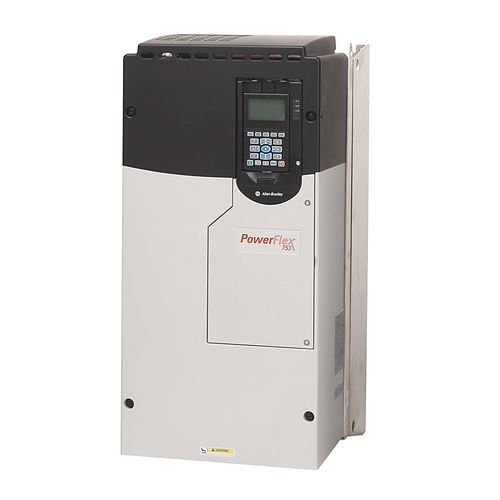

AC variable-speed drive PoPowerFlex® 755 series
embeddedHVACIP54

AC variable-speed drive
AC variable-speed drive
Add to favorites
Compare this product


Characteristics

Type
AC
Mounting
embedded
Applications
HVAC
Protection class
IP54
Other characteristics
IP20
Power

Min.: 750 W

Max.: 1,500,000 W

Current

Min.: 2 A

Max.: 1,400 A

Description

PowerFlex® 755 AC Drives provide ease of use, application flexibility, and high performance. They include multiple control and hardware options, as well as optional embedded safety features. These drives are well-suited for a wide variety of motor control applications including pumps, fans, and conveyors. With Integrated Motion on EtherNet/IP™, you can place these drives on the same network as Kinetix® drives. A Dual-port EtherNet/IP™ Option Module supports ring, linear, and star topologies, as well as Device Level Ring (DLR) functionality for fault tolerant connectivity and high drive availability. Features • Power ratings: • 200...240V: 0.37...132 kW / 0.5…200 Hp / 2.2…477 A • 380…480V: 0.75…1400 kW / 1.0…2000 Hp / 2.1…2330 A • 600V: 1.0…1500 Hp / 1.7…1530 A • 690V: 7.5…1500 kW / 12…1485 A • IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12 • Pre-engineered Power Option Bay provides cost-effective solution for popular power options • Dual-port EtherNet/IP Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks • Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically • V/Hz control, vector control with FORCE® technology, sensorless vector control, and permanent magnet motor control • Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000 Logix Designer® application • Predictive diagnostics for increasing the life of cooling fans and relay outputs
