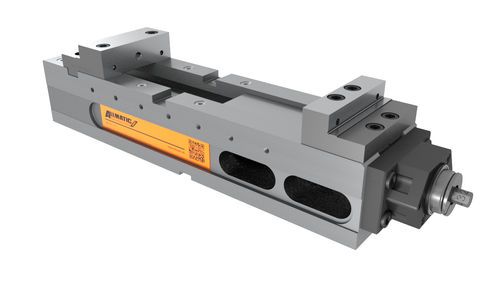

Machine tool vise NC8 125 L

high-pressure

Area of application: - Ideal for use on 3-axis and 4-axis machining centres - For conventional clamping Product features: - Tool-less force setting in 4 steps with a mechanical stop for safe operation, max.clamping force 40 kN - Constant, reproducible clamping force with mechanical power-assist - Proven maintenance-free and encapsulated high-pressure spindle, thus minimised cleaning requirements - Basic body made of GJS-60 - Guideway inductively hardened and ground - Aligning grooves in the base face - Lateral boreholes for extension - Evenness of basic body 0.01mm - Height of basic body ground -0.02mm - Width of base body ground -0.05mm, therefore can be used laterally - Quick-change system for add-on jaws and stepped strips - Reversible jaws: for min. / max. chuck capacities (0-445mm) with one pair of jaws - Fixed jaw, simple programming thanks to constant zero - Closing and opening of the complete clamping range including clamping process with a hand crank - The total length is independent of the workpiece size - Dimensions NC8 as for LC/TC - Jaw interface compatible with LC/TC - 7 threads per side for lateral workpiece stops M8 - Connection thread for angle drive - Individual QR code for fast access to technical information, accessories, replacement parts and repair costs
