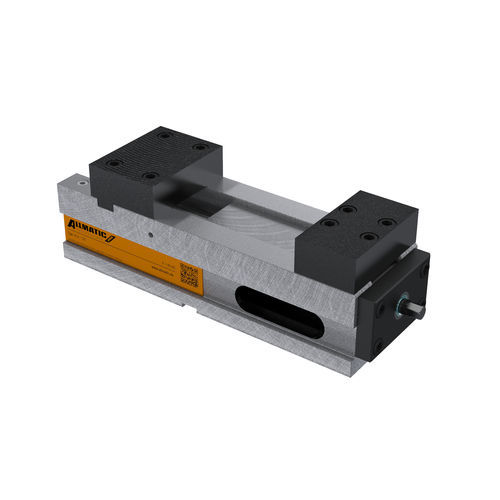

Machine tool vise NC4 125

Area of application: - Ideal for use on 3-axis and 4-axis machining centres - Jaw interface compatible with NC8 and LC/TC - Easy handling - Furthermore max. 40 kN clamping force per one rotation with hand crank Product features: - Mechanical stop for safe opeation, max. clamping force 40 kN - Constant, reproducible clamping force with mechanical power-assist - Proven maintenance-free and encapsulated high-pressure spindle, thus minimised cleaning requirements - Basic body made of GJS-60 - Guideway inductively hardened and ground - Aligning grooves in the base face - Evenness of basic body 0.01mm - Height of basic body ground -0.02mm - Width of basic body fine milled - Reversible jaws: for min. / max. chuck capacities (0-182mm, 48-230mm) with one pair of jaw - Flexible base jaws - milling a step extends the clamping range and they can also be used as mould jaws for moulded parts and thus for OP20 - Fixed jaw, simple programming thanks to constant zero - Closing and opening of the complete clamping range including clamping process with a hand crank - The total length is independent of the workpiece size - Dimensions NC4 as for NC8, LC and TC 125, thus placing them side by side possible - Jaw interface compatible with NC8 and LC/TC - 1 thread per side for lateral workpiece stops M8 - Individual QR code for fast access to technical information, accessories, replacement parts and repair costs
