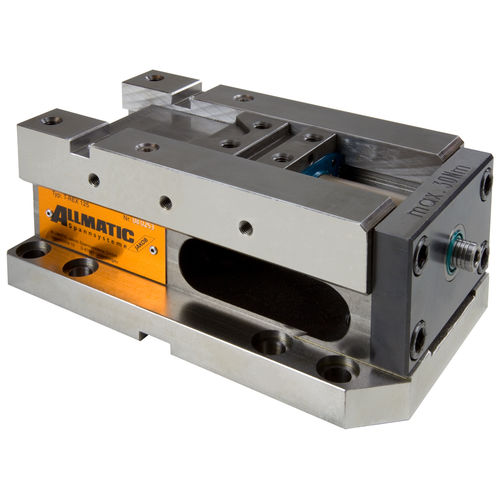

Machine tool vise T-REX

Area of application: - Horizontal installation – suitable for vertical CNC-controlled milling machines - Ideal for use on 5-axis machining centres - Reliable and fast clamping of unmachined parts, flame cut and sawn materials with gripp jaws - Clamping of parallel pre-machined workpieces with optional step jaws, Gripping studs suitable for materials with a strength of up to approx. 1.400 N/mm², depending on accessoires. Product features: - Standard with mounting holes for zero point clamping system, Pitch 200 - Click here for more technical informations - Optimum accessibility for 5-sided machining thanks to the combination of compact base and large clamping width - Stamping and clamping in a single process, in the working area itself, without any additional accessories - The movable/pivot support jaw allows different workpiece contours to be clamped - Gripper studs can be changed without tools and are easy to adjust by hand - Operation with a torque wrench – max. 30 Nm - High-pressure spindle with force amplifier - Fixing via the hole grid on both sides or alternative with side clamps - Possible zero point clamping bolts The clamping widths can be found in the respective clamping jaws!
