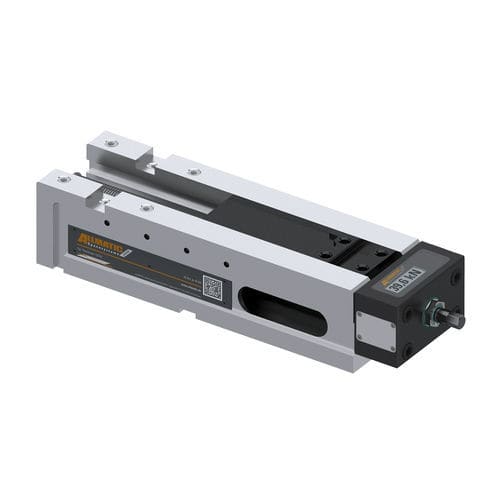

Machine tool vise TitanSense 125 M

Area of application: Integrated clamping force monitoring. Monitor clamping force while machining Process-reliable clamping with high repeatability Horizontal and vertical installation Ideal for 3- and 4-axis machines Clamping of raw and pre-machined parts (parallel, round and irregular parts) also with gripp and pull-down clamping Jaw width 125 mm Clamping force: max. 40 kN Clamping range: 0-504 mm Product features: Maximum safety: - Monitoring of the clamping force during clamping and machining due to integrated, electronic measuring system. Readout directly on display and via wireless transmission to terminal device (via Bluetooth BLE) - Encapsulated spindle with force amplifier (IP65). Input of max. 30 Nm for 40 kN clamping force - Operation via torque wrench Flexible use: - All jaws of the Titan2/NC8 series can be used - Jaws reversible - Unmachined parts in highly varied materials or with complex geometries, can be clamped securely. Different gripp-studs for materials up to approx. 1400 N/mm² strength - Quick change for attachment jaws and parallels - Titan2 spindle can also be used without monitoring - Holes for workpiece stop, angular drive and extension - Sides are ground - Bottom side with alignment grooves and locating holes Ø 25H6 M10 for zero-point clamping systems, inside micometre 200 mm ± 0,01 mm
