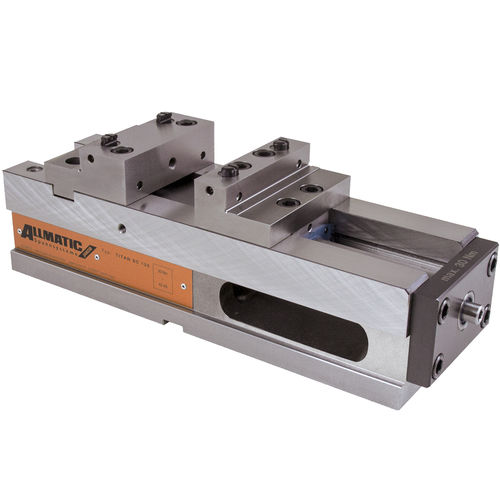

Machine tool vise TITAN SC 125

universalvertical

Area of application: - The classical, universal clamp, for vertical 3 axis machining centres - Conventional clamping and gripp clamping possible - Clamping of raw parts, flame cut and saw cuts by penetrating hardened and interchangeable gripp elements into the workpiece - With the support jaws, unmachined parts in highly varied materials, or with complex geometries, can be clamped securely and economically. Gripping studs suitable for materials up to approx. 1.400 N/mm² strength, depending on accessories. Product features: - Standard with mounting holes for zero point clamping system, inside micrometer 200 mm - Please click on "Downloads" for technical informations - With grounded jaws, the TITAN SC 125 has the precision which is necessary for machining workpieces - Fully enclosed gripp spindle for clamping and forming raw material - The high-pressure spindle allows you to, with a mechanical force amplifier (using the torque wrench), to work and clamp to a table - Stable GJS-60 body, grounded top and bottom - Double-sided M8 thread for workpiece stoppage - Precise tracks in the grounded surface of the soles for optimum alignment on the machining table - Click-quick-change system for attaching jaws and click parallels - Possible zero point clamping bolts Note: The movable jaw has no pendulum compensation. It is suitable for rectangular workpieces (saw cuts) / / <= 0.5 (concurrency less than or equal to 0.5 mm) or cylindrical workpieces O <= 0.5 (roundness less than or equal to 0.5 mm The clamping widths can be found in the respective clamping jaws!
