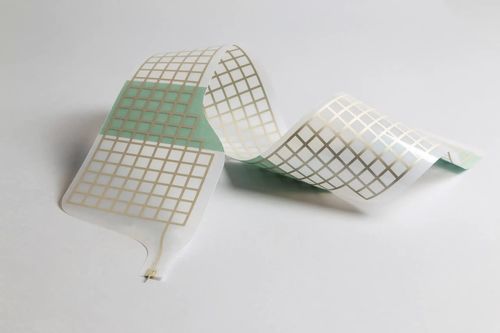

RF antenna

patchflexiblefor vehicles

<b>Main features</b><br>Printed antennas produced by Alper are used in a wide range of vehicle on-board communication functions such as DAB, TV and IoT connectivity. Production on flexible substrates with complex geometries enables optimal installation in confined spaces and unconventional shapes commonly required in modern vehicle design.<br><br><b>Materials and performance</b><br>Alper manufactures printed antennas on PET thin-film substrates using silver conductive inks. These thin-film antennas are lightweight, flexible and suitable for integration into body panels, interior trims and other vehicle components.<br><br><b>Applications</b><br><ul><li>On-board vehicle communication (DAB, TV)</li><li>IoT connectivity in automotive and related environments</li><li>Telecommunications and industrial applications requiring reliable connectivity</li></ul><br><b>Characteristics / Technical specifications</b><br><ul><li>Maximum dimensions: 1000x600 mm (custom dimensions available)</li><li>Adhesive application using a range of double-sided adhesives selected per use case</li><li>Optional adhesive aluminium ground planes as antenna complements</li><li>Custom designs available to customer specifications</li><li>Substrate temperature limits:<ul><li>Minimum: -40 °C</li><li>Maximum: 90 °C (continuous)</li><li>Maximum: 100 °C (short periods)</li></ul></li><li>Note: Component supplied as an unfinished part. Final product compliance and marking remain the responsibility of the manufacturer of the complete unit.</li></ul>
