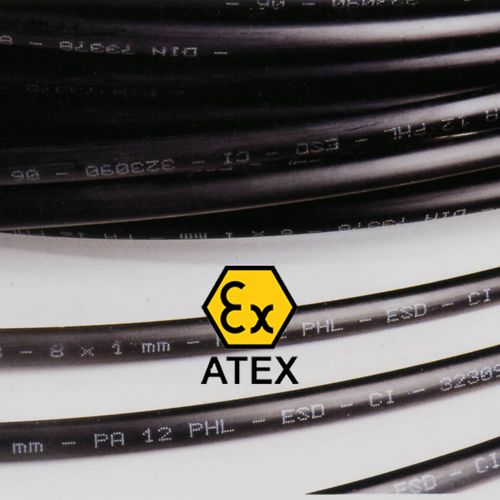

Hydrocarbon hose KNYTX
for compressed airpolyamidenylon

hydrocarbon hose
hydrocarbon hose
hydrocarbon hose
Add to favorites
Compare this product


Characteristics

Use
for hydrocarbons, for compressed air
Material
polyamide, nylon
Applications
for petrochemical applications, for tanker trucks, for explosive areas
Other characteristics
UV-resistant, anti-static, with smooth inner surface, ATEX, explosion-proof
Inner diameter

Max.: 8 mm
(0.315 in)

Min.: 4 mm
(0.157 in)

Outer diameter

Max.: 10 mm
(0.394 in)

Min.: 6 mm
(0.236 in)

Pressure

Max.: 67 bar
(971.753 psi)

Min.: 12 bar
(174.045 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)
