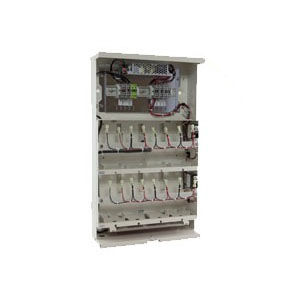

AC UPS MPS 12-100
outdoorcompactwith built-in battery

AC UPS
AC UPS
Add to favorites
Compare this product


Characteristics

Electrical characteristics
AC
Applications
outdoor
Other characteristics
compact, with built-in battery
Power

100 W

Input voltage

Min.: 90 V

Max.: 264 V

Description

Compact, integrated UPS system designed to operate in extreme environmentsNEMA 3R rated enclosure for superior reliability in outdoor applicationsWide AC input voltage range (90-264V) for worldwide deploymentsMultiple mounting options to accommodate space limitationsThe MPS 12-100 is an outdoor rated, multipurpose uninterruptible power supply (backup power solution) that supports 12V loads up to 100W. Protected by an outdoor rated (NEMA 3R) enclosure, the MPS 12-100 excels in the most severe weather conditions. With standard wall mount or optional pole mount kits, the installation of the MPS 12-100 is quick and easy, helped by the small compact design and light weight.In addition to the key protection features such as overload protection, over voltage protection, low battery cut off, and battery reverse polarity protection; two alarm signals for AC power outage (AC FAIL) and battery discharge (low battery) conditions are provided via contact relays. The MPS 12-100 is available in two models: a basic model that include a single 7.2Ah battery providing >30 min of runtime; and an extended power backup model providing >8 hours runtime @ 80W load.

Catalogs

No catalogs are available for this product.

See all of Alpha Technologies GmbH‘s catalogs
