Signal amplifier Pico M

voltageconditioningacquisition

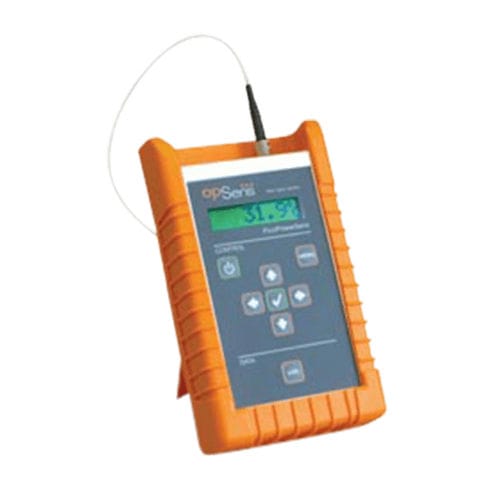

Single channel, handheld signal conditioner for GaAs-based fiber optic temperature sensors About the Pico M Fiber Optic Amplifiers Full featured, plug and play, 50 Hz sampling rate in a robust packaging. The Pico M is a compact and portable signal conditioner to be used with GaAs OTG-M series fiber optic temperature sensor. At the heart of the Pico M is the Semiconductor Band Gap (SCBG) technology which provides a mean for making accurate measurements of the temperature-dependent bandgap position of GaAs crystal. The Pico M is equipped with a large visible LCD display and can be battery operated. It comes with a standard ± 5 V output and a RS-232 communication port for real-time data acquisition. The Pico M can be controlled directly using the front-panel keypad or remotely using the standard RS-232 interface. A rugged casing with a removable rubber boot provides good mechanical protection against intensive handling in tough environments. With a 50 Hz sampling rate and a ± 0.3 °C accuracy (total accuracy including both signal conditioner and sensor errors), the Pico M delivers the performances needed for a wide range of medical measurement applications. Features Pico M • Compact and rugged design with rubber boot casing protection • Versatile and easy to use with large LCD display • High linearity and precision • 50 Hz sampling rate • ± 5 V and RS-232 output interfaces Applications for Pico M • MRI, RFI, microwave, EMI, ultrasound and electro surgery environments • Temperature monitoring for preclinical and research applications • High voltage environments • Microwave and food processing • Nuclear and hazardous environments • Civil engineering and geotechnical
