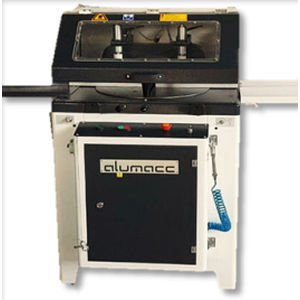

PVC cutting machine ET 0221for PVC profilessingle-head
Add to favorites
Compare this product
Characteristics
- Material
- for PVC
- Product handled
- for PVC profiles
- Configuration
- single-head
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 6 bar
(87.02 psi)- Overall length
1,100 mm
(43 in)- Minimum width
Max.: 3,000 mm
(118 in)Min.: 1,000 mm
(39 in)- Height
1,300 mm
(51 in)- Weight
390 kg
(859.8 lb)- Power supply
400 V
Description
GENERAL FEATURES
CHARACTERISTICS / TECHNICAL SPECIFICATIONS
- Operates with a vertical bed and bottom-feed mechanism.
- Performs precise cuts on PVC profiles at angles from 21° to 159°.
- Linear bearing guidance ensures accurate and stable cutting.
- Cutting-contact surfaces are made of stainless material resistant to wear, impact and corrosion.
- Fixed stop system offers easy selection of 21°, 45° and 90° angle positions.
CHARACTERISTICS / TECHNICAL SPECIFICATIONS
- Working system: Vertical bed with bottom-feed mechanism
- Cutting angle range: 21° – 159°
- Bearing/guidance: Linear bearing system
- Cutting-surface material: Stainless material resistant to wear, impact and corrosion
- Angle settings: 21°, 45°, 90° with fixed stop system for quick positioning
