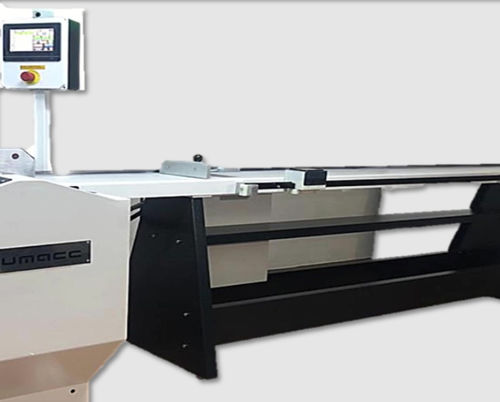

Automatic measurement system ED 0820

for profilesfor panels

Overview
The ED 0820 is a digital measuring and machining system for PVC door and sash profiles. It performs espagnolette, lock and cylinder machining operations using a template-guided system and digital positioning for repeatable results.

Key features

• Application: machining of espagnolette, lock and cylinder on PVC profiles
• Template tracking: mechanically adjustable template-following system for quick setup
• Milling motion: downward movement with quad rotary support bearings
• Compatible cutters: Ø 5.2 mm and Ø 8 mm cutters
• Cooling: integrated coolant system to maintain surface finish and tool performance

Technical specifications

• Model: ED 0820
• Target profiles: PVC door and sash profiles
• Template control: mechanical, practical adjustment
• Milling system: downward operation with four rotary supports
• Cutter diameters supported: Ø 5.2 mm, Ø 8 mm
• Cooling: built-in cooling for surface quality and tool life

Benefits for manufacturers

• Improved machining accuracy and repeatability
• Reduced setup time through adjustable template guidance
• Compatibility with standard cutter sizes for flexibility
• Consistent surface finish and extended tool life via cooling
