PVC cutting machine ET 0231for PVC profilesfor industrial applicationsfor the plastics industry
Add to favorites
Compare this product
Characteristics
- Material
- for PVC
- Product handled
- for PVC profiles
- Applications
- for industrial applications, for the plastics industry, for extrusion lines
- Configuration
- single-head
- Other characteristics
- programmable, vertical
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 6 bar
(87.02 psi)- Overall length
1,100 mm
(43 in)- Minimum width
Max.: 3,000 mm
(118 in)Min.: 1,000 mm
(39 in)- Height
1,300 mm
(51 in)- Weight
490 kg
(1,080.27 lb)- Power supply
400 V
Description
Overview

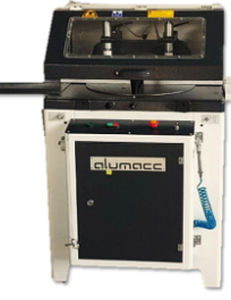

The ET 0231 is a PVC single-head cutting machine fitted with an optional digital measuring system for automatic positioning. It operates with a vertical bed bottom-exit mechanism and performs precise angled cuts from 21° to 159°.
Main features
Technical specifications
Applications
The ET 0231 is a PVC single-head cutting machine fitted with an optional digital measuring system for automatic positioning. It operates with a vertical bed bottom-exit mechanism and performs precise angled cuts from 21° to 159°.
Main features
- Optional digital measuring system enabling automatic movement to the desired length
- Vertical bed bottom-exit operation
- Cutting angle range: 21°–159°
- Linear bearing system for precise cutting
- Stainless material on profile cutting surfaces to resist wear, impact and corrosion
- Fixed stops with preset positions for 21°, 45° and 90°
Technical specifications
- Digital measuring system (optional)
- Vertical bed bottom-exit system
- Cutting angles: 21° – 159°
- Fixed stops: 21°, 45°, 90°
- Linear bearing guidance
- Stainless cutting contact surfaces
Applications
- Cutting PVC window and door profiles
- Extrusion workshops and fabrication lines
- Small to medium production and service centers
