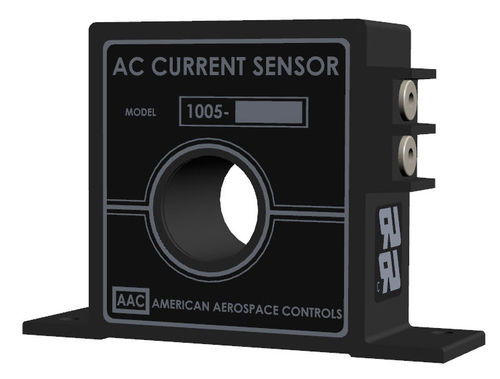

Hall effect current sensor 2 - 300 A | 1005 Series

Hall effect current sensor
Hall effect current sensor
Add to favorites
Compare this product


Hall effect
Electrical characteristics


Model 1005 AC Current Transducer provides an isolated 0 to +5Vdc output proportional to the AC input current. The sensors are self-excited (no power required), with an input current range from 2Aac to 300Aac and the transducers withstand, without performance degradation or damage, a continuous overload of 200Aac for ranges 2Aac to 100Aac and 400Aac for ranges 150Aac to 300Aac. The 1005 AC Current Transducer delivers accuracy over a temperature range from -20°C to +70°C and measures input current with a frequency range from 50 to 60Hz. The transducers are non-intrusive, come standard with a barrier interface and are UL and CSA Recognized
