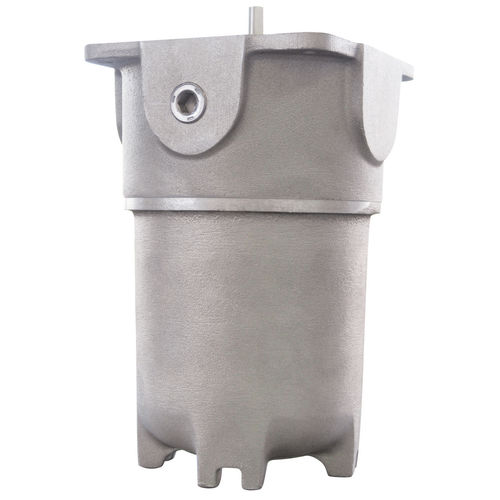

Resolver 1986XP

Explosion Proof Resolver is a 4.50” square mount resolver with a 3/8” input shaft that is designed to be mounted in hazardous applications. It is available as a single turn, multi-turn and dual resolver packages. The six different Resolver types are available to electrically match any competitor’s package. The AMETEK APT 1986XP Series hazardous area enclosures are rated as follows: • NEMA 7, Class l, Division 1 & 2, Group D • NEMA 9, Class ll, Division 1 & 2, Group E,F,G These enclosures are designed, manufactured and or altered to our interpretation of the following Underwriters Laboratory (UL) standards and have not been submitted for 3rd party approvals: • UL 1203 Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) • Locations (Second Edition, July 27, 1994) • UL 698 Industrial Control Equipment for Use in Hazardous (Classified) • Locations (Twelfth Edition, June 22, 1995) All resolver wiring is taken to a terminal strip inside the housing and is accessible through a 1/2” - 14 NPT conduit opening.
