Absolute position sensors

Measuring range: 25 mm - 7,620 mm

R-Series V - the new generation R-Series V is the successor to our current fourth generation. The new sensors have higher resistance to vibration and high temperatures, are ready for Industry 4.0 and fit perfectly ...

Measuring range: 50 mm - 3,000 mm

Temposonics E-Series ET is the ideal solution for usage in hazardous areas and in high temperature applications with a small and compact housing. Global approvals: ATEX / IECEx / CEC / NEC Compact installation dimensions High ...

Measuring range: 50 mm - 2,500 mm
Ambient temperature: -40 °C - 105 °C

... MHRM sensor extends the rugged design of the Temposonics MH-Series sensors to railway applications. With two mounting styles, the responsive magnetostrictive linear position sensors ...

Measuring range: 4,000 mm
Linearity: 0.1 % - 0.2 %
Ambient temperature: -40 °C - 85 °C

With inclination sensor in MEMS technology Optional redundant version Specifications CANopen redundant Resolution - adjustable via CAN bus Sensing device - Magnetic absolute encoder / MEMS ...

Measuring range: 3,000 mm
Linearity: 0.1 % - 0.2 %
Ambient temperature: -40 °C - 85 °C

With magnetic absolute encoder With inclination sensor in MEMS technology Redundant version available Specifications Resolution - adjustable via CAN bus Sensing device - Magnetic absolute ...

Measuring range: 6,000 mm
Linearity: 0.1 %
Ambient temperature: -40 °C - 85 °C

... Specifications Resolution - adjustable via CAN bus Linearity (position) - Up to ±0.05 % f.s. Linearity (inclination) - 0.05° (±30°) 0.1° (±60°) 0.2° (±180°) Sensing device - Magnetic absolute ...

Power consumption: 1.5 W
Supply voltage: 4.5 V - 30 V
Ambient temperature: -40 °C - 105 °C

... into small installation space possible Absolute resolution up to 20 Bit Repeatability 0.01° Reading distance ≤0.6 mm Interface BiSS C, SSI Optionally analog Sin/Cos 1 Vss or digital line driver Magnetic absolute ...

Measuring range: 0.1 mm - 1 mm
Power consumption: 1 W
Supply voltage: 2.5 V - 30 V

... magnetic sensor and the MRAC506 magnetic ring forms a system for absolute angle measurement. The MSAC506 sensor has an SSI interface with a resolution of 12 … 16 bit. There is also an ...

Measuring range: 0 m - 16 m
Supply voltage: 4.5 V - 30 V
Ambient temperature: -40 °C - 85 °C

The absolute encoder MSA213K convinces with its high absolute resolution of 1 µm for precise position detection and a high reading distance of up to 0.8 mm at the same time. With the ...

Measuring range: 1,000 mm
Ambient temperature: -40 °C - 85 °C

Absolute position transducers for high dynamic positioning tasks. Inductive measurement principle, touchless position detection with free position markers; ...

Ambient temperature: -40 °C - 125 °C

Absolute NOVOHALL touchless rotary sensor. Suitable for high temperature applications. Large selection of analog and fieldbus interfaces. NOVOHALL Rotary Sensor, touchless, RFE-3200 ...

Measuring range: 200 mm
Ambient temperature: -40 °C - 100 °C

... life span Position transducer withNOVOPAD non-contactinginductive measurement princi- ple on printed circuit boardbasis, for direct, accuratemeasurement of travel indisplay- or feedback applications.The ...

Measuring range: 8 mm - 15 mm

... principle provides absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences. In the MM(R)10 ...

Measuring range: 10 mm - 30 mm
Ambient temperature: -30 °C - 105 °C

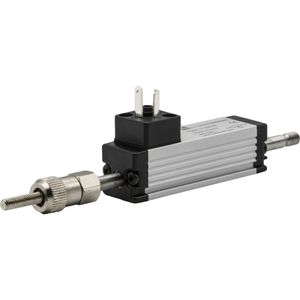

Potentiometric Linear Transducer MM Highly compact linear transducer with front and rear guided push rod and pilot ring for 10 to 30 mm strokes Space-saving due to small dimensions Long life and high accuracy Measurement ...

... mechanical position sensors detect one or two positions within a single, compact electromechanical component. Two independent commutations can sense two previously ...

Ambient temperature: -30 °C - 85 °C

Sensata | BEI Sensors ACW4 sensors provide absolute single turn measurement with a CANopen output in an over-molded, two-part package that offers design flexibility & protection from the environment.

Measuring rate: 1 kHz

... rotary sensor is a non-contacting Hall effect device with up to 360° of rotation and dual outputs. This rugged design is ideally suited for continuous rotation applications where reliability and durability are a priority. ...

Measuring range: 0 mm - 40,000 mm

... and 50,000 mm in a variety of incremental and absolute output options. In addition, models in this series are available with incremental, potentiometer, or absolute output (except CD046, which is absolute ...

Measuring range: 50 mm - 1,000 mm
Measuring rate: 1 Hz - 1,000 Hz
Ambient temperature: -40 °C - 125 °C

Magtrol’s line of Displacement Transducers provide contactless measurement of absolute piston position in hydraulic and pneumatic cylinders and other applications. Their robust construction, ...

Measuring range: 50 mm - 1,250 mm

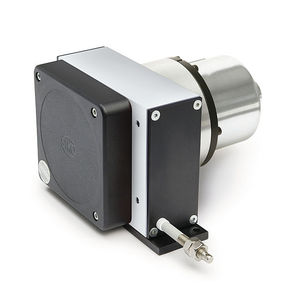

... wire position transducer is designed for industrial applications. The instrument is compact in size and has short assembly time. The device is also easy to customize and hence offers economical solution ...

Measuring range: 3,000 mm - 5,000 mm

Ranges from 3125 to 6000 mm Linearity max. ±0.02 % Output analog 0...10 V, 4...20 mA, Potentiometer Output digital TTL, HTL, SSI, Profibus, CANopen, DeviceNet, Ethercat, Profinet Protection class IP65 (optional IP67)

Measuring range: 6 m - 42.5 m

The SX135 Long Range Draw Wire Sensors are manufactured by WayCon Company. The sensors are made of stainless steel. They are applied in humid and moderate corrosive environmental conditions. These ...

Measuring range: 50 cm
Linearity: 0.3 %
Supply voltage: 12 V

XL50S Series Draw wire sensor The draw wire sensor is widely considered on construction, forklift, automation and food packaging machines. - Draw-wire position sensor ...

Measuring range: 50 cm
Linearity: 0.3 %
Supply voltage: 12 V

XL50S Series Draw wire sensor The draw wire sensor is widely considered on construction, forklift, automation and food packaging machines. - Draw-wire position sensor ...

Measuring range: 600 mm - 1,500 mm
Supply voltage: 24, 5 V
Ambient temperature: -30 °C - 85 °C

XL60 Series Draw Wire Sensor - Economical version Draw Wire Sensor - Availabe for multi-turn wirewound potentiometer incorporated (W type) - Available for multi-turn Hall effect contactless ...

Measuring range: 0 mm - 1,250 mm
Linearity: 0.1 % - 0.5 %
Ambient temperature: -20 °C - 80 °C

... displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to ...

Measuring range: 0 mm - 1,500 mm

... displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to ...

Measuring range: 0 mm - 2,500 mm

... displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to ...

Measuring range: 50 mm - 950 mm
Linearity: 0.1 %

The linear motion potentiometers series PNS have a 31 mm square section housing and 6 mm diameter shaft. Their measuring strokes range from 50 to 950 mm, and their standard resistive value is 5 KOhm. The conductive plastic resistive ...

Measuring range: 25 mm - 150 mm
Linearity: 0.1 % - 0.2 %

Thanks to their small size – 21 mm square section case – the linear potentiometers seris PT can be profitably employed for those applications where limited dimensions are a critical factor. The series strokes range from 25 to 150 mm. ...

Measuring range: 50 mm - 950 mm
Linearity: 0.1 %

The linear motion potentiometers series PLS have a 31 mm square section housing and 6 mm diameter shaft. Their measuring strokes range from 50 to 950 mm, and their standard resistive value is 5 KOhm. The conductive plastic resistive ...

Measuring range: 0 mm - 100 mm
Linearity: 0.1 %
Ambient temperature: -30 °C - 100 °C

• Sensor connection: 4-pin M12x1 plug connector Displacement sensor with resistance and collector path of conductive plastic on a glassfibre reinforced substrate with internal return spring for direct ...

Measuring range: 3 m

Absolute measuring length up to 3 m linear position transducer MAG100 is a magnetostrictive position transducer with threaded connection, designed for ...

Measuring range: 3 m

Absolute measuring length up to 3 m linear position transducer MAG300 is a magnetostrictive position transducer with flange connection, designed for ...

Measuring range: 3 m

Absolute measuring length up to 3 m linear position transducer MAG100 is a magnetostrictive position transducer with threaded connection, designed ...

Measuring range: 50 mm - 2,500 mm
Measuring rate: 10 Hz - 2,000 Hz
Supply voltage: 18 V - 30 V

Contactless linear position transducer with magnetostrictive technology: the absence of electrical contact on the cursor eliminates problems of wear and consumption and guarantees almost unlimited life. The ...
