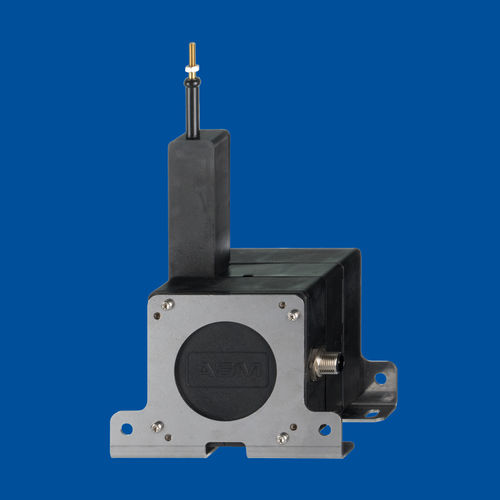

Angular position sensor posiwire® WST 85
draw-wirecontactlessmagnetic

angular position sensor
angular position sensor
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
draw-wire, angular
Contact / non-contact
contactless
Technology
magnetic, MEMS
Output signal
CANopen
Protection class
IP67, IP69
Applications
industrial, heavy-duty, OEM applications, for agricultural machinery
Other characteristics
rugged, absolute, redundant
Measuring range

6,000 mm
(236.22 in)

Linearity

0.1 %

Ambient temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Protection class IP67 Magnetic absolute encoder Inclination sensor in MEMS technology Optional redundant version Specifications Output - CANopen CANopen redundant Resolution - adjustable via CAN bus Sensing device - Magnetic absolute encoder / MEMS element Housing material - PBT and stainless steel Measuring cable: stainless steel Protection class - IP67/IP69 (with mating connector only) Connection - Connector M12 Weight - Approx. 1,250 g
