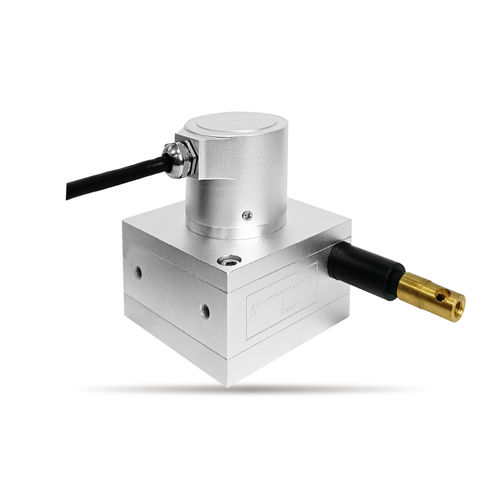

Draw-wire position sensor XL60H
non-contactmagneticHall effect

Draw-wire position sensor - XL60H - SENTOP by Shanghai Sibo M&E Co., Ltd. - non-contact / magnetic / Hall effect
Draw-wire position sensor - XL60H - SENTOP by Shanghai Sibo M&E Co., Ltd. - non-contact / magnetic / Hall effect
Draw-wire position sensor - XL60H - SENTOP by Shanghai Sibo M&E Co., Ltd. - non-contact / magnetic / Hall effect - image - 2
Add to favorites
Compare this product
Go to the SENTOP by Shanghai Sibo M&E Co., Ltd. website for more information

Characteristics

Type
draw-wire
Contact / non-contact
non-contact
Technology
potentiometer, magnetic, Hall effect, resistance
Output signal
analog output, with potentiometric output
Measurement object
transparent
Protection class
IP65, IP54
Applications
industrial, rugged, for robotics, heavy-duty, for mobile hydraulics, long-range, for actuators, axle load, for automation, for hazardous locations
Other characteristics
absolute, compact, rugged, precision, high-resolution, shock-proof, stainless steel, vibration-resistant, economical, rectangular, flexible, long-range
Measuring range

Min.: 600 mm
(23.62 in)

Max.: 1,500 mm
(59.06 in)

Supply voltage

5 V, 24 V

Ambient temperature

Min.: -30 °C
(-22 °F)

Max.: 85 °C
(185 °F)

Description

Product
Draw wire sensor XL60H. Incorporates a contactless potentiometer (SENTOP R22M) for high-resolution linear displacement measurement up to 1500 mm.

Key Features
  • Contactless potentiometer measurement
  • Measurement range: 1500 mm
  • Selectable output signals: 5K, 10K, 0–5V, 0–10V, 4–20mA


General Mechanical Specifications
  • Measure stroke: 1500 mm
  • Protection degree: IP54
  • Tensile force: 2 N – 4 N
  • Mechanical life expectancy: 20,000,000 cycles
  • Mass: Approx. 580 g
  • Housing material: Anodized aluminium alloy
  • Wirerope: 0.6 mm flexible wire
  • Max. reciprocating speed: 600 mm/s
  • Cable length: 2 m


Environmental Specifications
  • Operating temperature range: -30℃ to +85℃
  • Storage temperature range: -30℃ to +85℃
  • Shock: 10–1500 Hz, 10G
  • Vibration: 50G


General Electrical Specifications
  • Contactless potentiometer model: SENTOP R22M
  • Applied voltage: 5V ±10%
  • Output signal (standard): 0–5V (ratio) (other options: 0–10V, 4–20mA, resistance outputs 5K/10K)
  • Current consumption (no-load): <16 mA
  • Output deviation at both ends: <1%·VCC
  • Load resistance: >100 kΩ
  • Electrical angle: 3600° ±7°
  • Independent linearity tolerance: ±0.5%
  • Resolution: 4096 (12-bit)
  • Update rate: 0.3 ms


Special Specifications Available
  • Multi-segment output, special cables, higher protection degrees and other custom options available on request


Caractéristiques / spécifications techniques
  • Model: XL60H
  • Type: Draw wire sensor (contactless potentiometer based)
  • Measure stroke: 1500 mm
  • Protection degree: IP54
  • Tensile force: 2 N–4 N
  • Mechanical life expectancy: 20,000,000 cycles
  • Mass: Approx. 580 g
  • Housing: Anodized aluminium alloy
  • Wirerope: 0.6 mm flexible wire
  • Max. reciprocating speed: 600 mm/s
  • Cable length: 2 m
  • Operating / Storage temperature: -30℃ to +85℃
  • Shock: 10–1500 Hz, 10G; Vibration: 50G
  • Contactless potentiometer: SENTOP R22M
  • Supply voltage: 5V ±10%
  • Output signals: 0–5V (ratio), 0–10V, 4–20mA, 5K, 10K
  • No-load current: <16 mA
  • Output deviation at ends: <1%·VCC
  • Load resistance: >100 kΩ
  • Electrical angle: 3600° ±7°
  • Linearity tolerance: ±0.5%
  • Resolution: 4096 (12-bit)
  • Update rate: 0.3 ms
  • Custom options: multi-segment output, special cables, higher protection degrees
