Rugged position sensors

Measuring range: 100 mm - 1,500 mm

The P60 and P96 Series are composed of draw wire sensors for general purposes. They come with many options like different kinds of analog outputs and measuring ranges to cater virtually all applications. The measuring ...

Measuring range: 50 mm - 250 mm
Linearity: 0.2 % - 0.3 %
Ambient temperature: -20 °C - 80 °C

The draw wire sensors of the MPM Series are the preferred choice in applications which are characterized by fast movements, short displacements and limited space. This is achieved using miniaturized components combined ...

Measuring range: 100 mm - 1,000 mm
Linearity: 0.1 % - 0.5 %
Ambient temperature: -20 °C - 80 °C

The MP/MPW Draw-Wire Sensors, manufactured by Micro-Epsilon, are generally designed for usage involving industrial and mobile applications. Furthermore, this compact draw-wire displacement sensor, suitable ...

Measuring range: 25 mm - 7,620 mm

R-Series V - the new generation R-Series V is the successor to our current fourth generation. The new sensors have higher resistance to vibration and high temperatures, are ready for Industry 4.0 and fit perfectly ...

Measuring range: 50 mm - 3,000 mm

Temposonics E-Series ET is the ideal solution for usage in hazardous areas and in high temperature applications with a small and compact housing. Global approvals: ATEX / IECEx / CEC / NEC Compact installation dimensions High ...

Measuring range: 25 mm - 7,620 mm

... the first linear position sensors in the industry to meet SIL 2 standards. In addition, they are fully compliant with NEC, CEC, ATEX and IECEx Class I, II, III Division 1, Division 2 and Zone 0/1, Zone ...

... as required. The sensors can be used to easily replace currently installed sensors and used without IO-Link thanks to their backward compatibility he all-rounder for position and process ...

Measuring range: 4,000 mm
Linearity: 0.1 % - 0.2 %
Ambient temperature: -40 °C - 85 °C

Protection class up to IP67/69 With inclination sensor in MEMS technology Optional redundant version Specifications Output - CANopen CANopen redundant Resolution - adjustable via CAN bus Sensing device - Magnetic ...

Measuring range: 6,000 mm
Linearity: 0.1 % - 0.2 %
Ambient temperature: -40 °C - 85 °C

Protection class up to IP67/69 With inclination sensor in MEMS technology Optional redundant version Specifications Output - CANopen CANopen redundant Resolution - adjustable via CAN bus Sensing device - Magnetic ...

Measuring range: 20,000 mm
Linearity: 0.1 % - 0.2 %
Ambient temperature: -40 °C - 85 °C

Protection class up to IP67/69 With inclination sensor in MEMS technology Optional redundant version Specifications Output - CANopen CANopen redundant Resolution - adjustable via CAN bus Linearity (position) ...

Measuring range: 4,000 mm

... -actuated encoder SG42 robust design and redundant sensor system with measuring length Wire-actuated encoder with redundant acquisition of linear measurement distances with a max. measuring length ...

Wire-actuated encoder SG121 robust design with 12 m measurement length Universally applicable wire-actuated encoder with measuring lengths of max. 12000 mm, robust construction as well as precise ...

Measuring range: max 5000.0 mm

... encoder SGH50 Position sensor for hydraulic cylinders with measuring lengths up to 5000 mm Absolute position sensor for hydraulic cylinders, telescopic cylinders, and ...

... mechanical position sensors detect one or two positions within a single, compact electromechanical component. Two independent commutations can sense two previously ...

Ambient temperature: -30 °C - 85 °C

Sensata | BEI Sensors ACW4 sensors provide absolute single turn measurement with a CANopen output in an over-molded, two-part package that offers design flexibility & protection from the environment.

... accurate non-contacting position sensors. The 8360’s low profile and throughhole design make it desirable for applications like steering wheel and boom angle, where space is limited and the sensor ...

Measuring rate: 1 kHz

... Series rotary sensor is a non-contacting Hall effect device with up to 360° of rotation and dual outputs. This rugged design is ideally suited for continuous rotation applications where reliability and ...

Measuring range: 10 mm - 30 mm

... This compact sensor will be mounted by means of the pilot ring and the two thread holes on the front side. The mechanical detection of linear movement of the linear sensor is done by a rear and front ...

Measuring range: 50 mm - 1,250 mm

... wire position transducer is designed for industrial applications. The instrument is compact in size and has short assembly time. The device is also easy to customize and hence offers economical solution ...

Measuring range: 1,000 mm - 3,000 mm

Ranges from 1000 to 3000 mm Linearity max. ±0.02 % Output analog 0...10 V, 4...20 mA, Potentiometer Output digital TTL, HTL, SSI, Profibus, CANopen, DeviceNet, Ethercat, Profinet Protection class IP65 (optional IP67)

Measuring range: 3,000 mm - 5,000 mm

Ranges from 3125 to 6000 mm Linearity max. ±0.02 % Output analog 0...10 V, 4...20 mA, Potentiometer Output digital TTL, HTL, SSI, Profibus, CANopen, DeviceNet, Ethercat, Profinet Protection class IP65 (optional IP67)

... the restricted applications of potentiometric angle sensors. Typical applications: Position feedback in servo-systems Zero detectors Pendulum weighing machines Cam and butterfly flap positions Twist ...

Measuring range: 50 mm - 1,000 mm
Measuring rate: 1 Hz - 1,000 Hz

Product Description Magtrol’s line of Displacement Transducers provide contactless measurement of absolute piston position in hydraulic and pneumatic cylinders and other applications. Their robust ...

Measuring range: 20 cm - 800 cm

PL60 Reading head for interpolator MJ100 and for SL331 tape scale Compatible with interpolator: MJ100/MJ110 Max. response speed: 720m/min with 2µm resolution with MJ100 Max. resolution: 2µm (phase to phase) Easy installation Design ...

Measuring range: 5 cm - 3,000 cm
Supply voltage: 5 V - 30 V
Ambient temperature: 0 °C - 45 °C

PL81, PL82 Series with TTL output signal for SL110 and SL130 magnetic tape scales Reading head for SL110 / SL130 magnetic tape scale PL81: TTL by Open collector output PL82: A/B-phase by TTL line driver interface (RS422) Max. response ...

Measuring range: 10 cm - 3,000 cm
Supply voltage: 5 V

PL20C Reading head for SL110/ SL130 tape scale Reading head for SL110 / Sl130 magnetic tape scales A/B-TTL line driver output (EIA-422) for LH70 and LG20 DRO displays Max. response speed: 300m/min Max. resolution: 10µm (phase to ...

Measuring range: 4,250 mm

Absolute position transducers in robust profile design; NOVOSTRICTIVE non-contacting, magnetostrictive measurement principle, non-contact position detection with free ...

Measuring range: 10 mm

Absolute precision transducer with central mounting, durable because contactless measurement; completely encapsulated by a robust housing, temperature-resistant precision due to supplementary regulation ...

Measuring range: 300 mm

Potentiometric position transducer with very compact dimensions; robust design with metal flanges; sintered bronze plain bearing; long life span and high adjustement speed; easy to assemble ...

Measuring range: 600 mm - 1,500 mm
Supply voltage: 24, 5 V
Ambient temperature: -30 °C - 85 °C

XL60 Series Draw Wire Sensor - Economical version Draw Wire Sensor - Availabe for multi-turn wirewound potentiometer incorporated (W type) - Available for multi-turn Hall effect contactless ...

door lock, door position sensor, access control Traffic light indicators of multiple designs specifically designed for cleanrooms, locks, sensors, cables, custom made adhesive membranes. ...

Ambient temperature: -20 °C - 100 °C

Highly miniaturized: 5 x 6 x 0.8 mm Outputs A quad B Robust against oil grease, liquids, dust, particles Programmable resolution and max speed Optional with holder, cable and connector The ID4501C incremental encoder ...

Measuring range: 50 mm - 950 mm
Linearity: 0.1 %

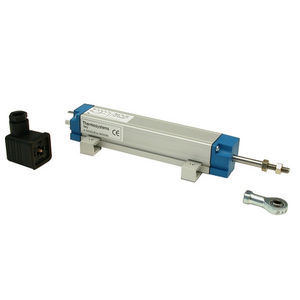

The linear motion potentiometers series PNS have a 31 mm square section housing and 6 mm diameter shaft. Their measuring strokes range from 50 to 950 mm, and their standard resistive value is 5 KOhm. The conductive plastic resistive ...

Measuring range: 50 mm - 950 mm
Linearity: 0.1 %

The linear motion potentiometers series PLS have a 31 mm square section housing and 6 mm diameter shaft. Their measuring strokes range from 50 to 950 mm, and their standard resistive value is 5 KOhm. The conductive plastic resistive ...

Measuring range: 50 mm - 750 mm
Linearity: 0.1 %

The linear motion potentiometers series PN2S have a 31 mm square section housing, 6 mm diameter shaft and two fixing ball joints at the ends. Their measuring strokes range from 50 to 750 mm, and their standard resistive value is 5 ...

Supply voltage: 5 V - 32 V
Ambient temperature: -40 °C - 85 °C

Rotary Position Sensor Contactless / Full redundant double die hall sensor 0 – 360° programmable (0.1° resolution ) 6 way, Delphi Packard Metri Pack 150 10 Million lifetime cycles Outputs: Analog+IVS ...

Measuring range: 0 cm - 125 cm
Linearity: 0 % - 0.1 %
Supply voltage: 4.8 V - 32 V

Incremental linear displacement sensors are suitable for motion control and position measurement of mobiles. An optical encoder is coupled to the drum of the cable sensor on which the ...

Measuring range: 0 mm - 1,250 mm
Linearity: 0.1 % - 0.5 %
Ambient temperature: -20 °C - 80 °C

... displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to ...

Measuring range: 0 mm - 1,500 mm

... displacement sensors are suitable for motion control and position measurement. This potentiometer is coupled to the drum, so the mechanical movement is converted into a resistance value according to ...
