Draw-wire position sensor SG42
potentiometeranalogIP65

draw-wire position sensor
draw-wire position sensor
draw-wire position sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Technology
potentiometer
Output signal
analog
Protection class
IP65
Other characteristics
rugged, redundant
Measuring range

4,000 mm
(157.48 in)

Description

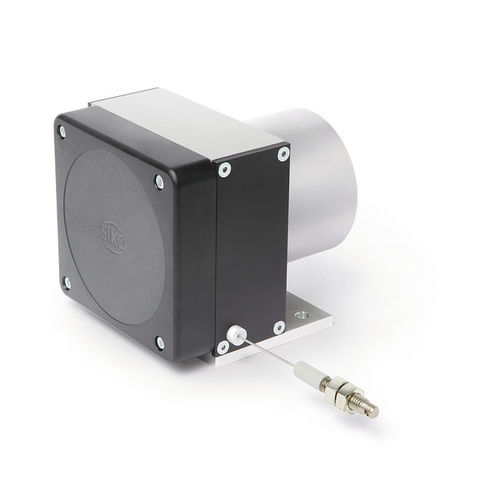

Wire-actuated encoder SG42 robust design and redundant sensor system with measuring length Wire-actuated encoder with redundant acquisition of linear measurement distances with a max. measuring length of . Profile SG42: Robust design Measuring lengths up to Analogue signal output in redundant design (2x 4…20 mA or potentiometer) Variable mounting options Lockable vent and water drain holes Very robust measuring rope (stainless steel) IP65 protection category M12 plug connection Mechanical data - - Feature - Technical data - Additional information Housing - aluminum/plastic - Wire design - c0.87 mm - Steel rope (stainless). plastio-coated Extension force - £3 N - Measured distance/ rope drum révolution - 200 mm - Absolute accuracy - ±0.35 % - relating to measuring length (mm) Weight - '■0.79 kg - Electrical data - - ■ Encoder potentiometer Feature - Technical data - Additional information Operating voltage - 230 V - power loss on the potentiometer <1 W Power rating - 2 W at 70 5C - Résistance - 10 kQ - Résistance tolérance - ±5 % - Standard terminal résistance - 0.5% or 1 C - the higher value always applies Linearity tolérance - ±0.25 % - Type of connection - M12 plug connector (A-coded) - 8-pole. 1x pin ■Transducer, power output - - Feature - Technical data - Additional information Operating voltage - 10 ... 30 VDC - with load impédance 2500 Q voltage between l+ and I- Output current - 4 ... 20 mA <2x) - 4/20 mA 4/20 mA - 20 ... 4 mA (2x) - 20/4 mA 20/4 mA - 4 ... 20 mA. 20 ... 4 mA - 4/20 mA 20/4 mA Type of connection - M12 plug connector (A-coded) - 8-pole. 1x pin
