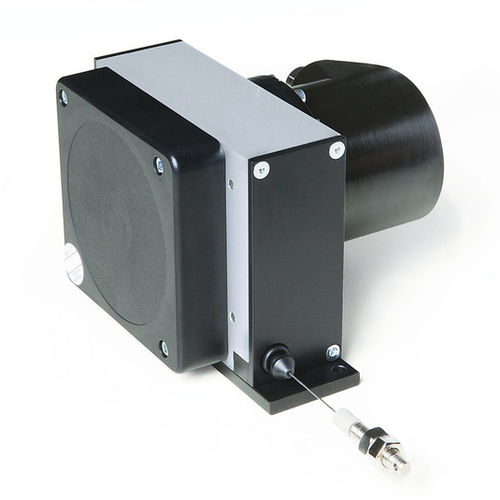

Draw-wire position sensor SG121
rugged

draw-wire position sensor
draw-wire position sensor
draw-wire position sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Other characteristics
rugged

Description

Wire-actuated encoder SG121 robust design with 12 m measurement length Universally applicable wire-actuated encoder with measuring lengths of max. 12000 mm, robust construction as well as precise and safe wire guidance, prepared for attaching the most diverse types of rotary encoders with a 58 mm standard flange. Profile SG121: - Robust design - Easy mounting - Measurement lengths up to max. 12000 mm - Incremental or absolute encoder - Also available as a safety version in combination with WV58MR rotary encoder - High flexibility thanks to free choice of rotary encoders with 58 mm standard flange - Various wire types - With PURE.MOBILE technology Mechanical data - - Feature - Technical data - Additional information Housing - aluminum/plastic - Wire design - c0.8 mm - Steel cable - c0.6 mm - Steel cable, plasticsheathed - c0.8 mm - para-line Extension force - £8 N - on the rope Measured distance/ rope drum révolution - 200 mm - Accélération - £23.5 m/s2 - Electrical data Rotary encoders suitable for the SG121 are featured on our website w*.v.v.siko-global.com. Depending on the output signais, the following are suitable for: ■ - Analog outputs such as current or voltage: AV58M ■ - Incrémental outputs: IV5800 ■ - Absolute outputs: WV58MR. WV36M/SSI. WV36M/CAN Among others. SIKO encoders hâve the following interfaces: Incrémental. SSI. CANopen. CANopen Safety. SAE J1939. Field bus. and Ethernet The technical spécifications for these devices are given in the respective data sheet. Numerous encoder models from various manufacturer can also be used. System data Feature - Technical data - Additional information Repeat accuracy - ±0.15 mm - mechanical. depending on the direction of travel (1st position)
