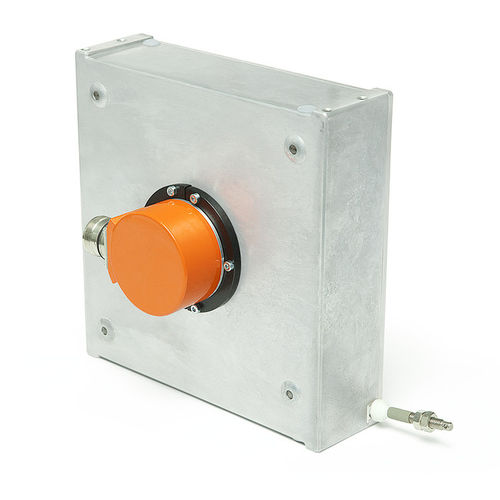

Draw-wire position sensor SG150
mechanicalanalogcompact

draw-wire position sensor
draw-wire position sensor
draw-wire position sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Technology
mechanical
Output signal
analog
Other characteristics
compact
Applications
long-range
Measuring range

15,000 mm (590.551 in)

Description

Wire-actuated encoder SG150 Robust design with 15 m measuring length Profile SG150: Very compact design Measurement lengths up to max. 15000 mm Flexible wire outlet Wire-actuated encoder for rotary encoder with 58 mm servo-flange Robust design Very robust measuring rope (stainless steel) Mechanical data - - Feature - Technical data - Additional information Housing - aluminum die-cast - Wire design - s0.87 mm - Steel wire (stainless). plastic coated - e0.81 mm - Steel wire (stainless) Extension force - 215.5 N - Measured distance/ rope drum révolution - 500 mm - Weight - -2.5 kg - without rotary encoder Electrical data Rotary encoders suitable for the SG150 are featured in RotoLine catalogue 2. Depending on the output signais the following are suitable for... ■ - Analog outputs such as current or voltage: AV58M ■ - Incrémental outputs: IV5800 ■ - Absolute outputs: WV58MR. V\A/S6M/SSI. WV36M/CAN The technical spécifications for these devices are given in the respective data sheet. A number of transmitter versions of various manufacturer can also be used. System data Feature - Technical data - Additional information System accuracy - ±0.1 % - relating to measuring length (mm) Repeat accuracy - ±0.2 mm - per direction of approach Travel speed - 22.4 rrv's - Ambient conditions - - Feature - Technical data - Additional information Ambient température - -40 ... 80 SC - Protection category - see rotary encoder
