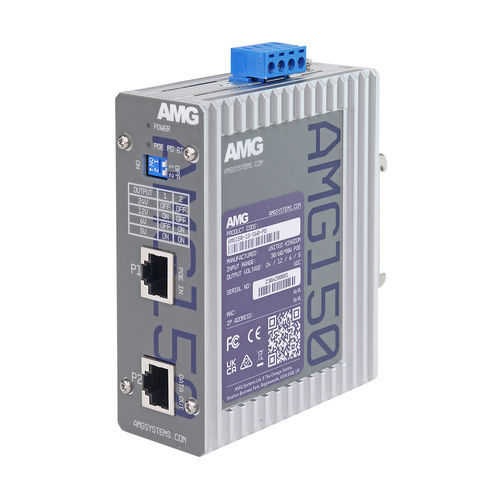

PoE splitter AMG150-1G-S60-PD

Industrial 1 Port PoE Splitter, 1 x 10/100/1000Base-T(x) RJ45 Port with 802.3bt 90W PD Input, 1 x 10/100/1000Base-T(x) RJ45 Port Output, 5/6/12/24VDC Output @ 60W (5A Max), DIN Rail/Wall Mount, -40°C to +75°C, Includes 2x DC Power Cables, PoE Powered Features -40°C to +75°C temperature maintains performance in extreme conditions Plug & Play – no need for any user configuration IEEE802.3af/at/bt 15/30/60/90W PoE PD power User selectable 5/6/12/24VDC output voltage Output power of up to 60W or 5 Amps (whichever is reached first for the respective voltage) Integrated surge & ESD protection for maximum protection in harsh environments Designed in the USA & UK. Manufactured in the United Kingdom AMG Lifetime Support Warranty Designed in a compact DIN rail or wall mount housing, the AMG150 series industrial Power over Ethernet (PoE) splitters are ideally suited for providing power to remote devices that require low voltage DC inputs from a PoE enabled source. The splitter is powered by an IEEE802.3af, at or bt PoE PD with support for a 15, 30, 60 or 90W input and coverts this power through a high efficiency DC-DC converter and provides from 25W to 60W (5A Max) of available low voltage DC power in user selectable 5, 6, 12 or 24VDC voltages available on the dual output power screw terminal connector. The splitter is compatible with any manufacturers IEEE802.3af, at or bt compliant PoE source device (PSE). The Ethernet ports support transparent 10/100/1000Mb data traffic pass-through. Fitted with robust surge and ESD protection ensures maximum operating reliability and the highest levels of performance.
