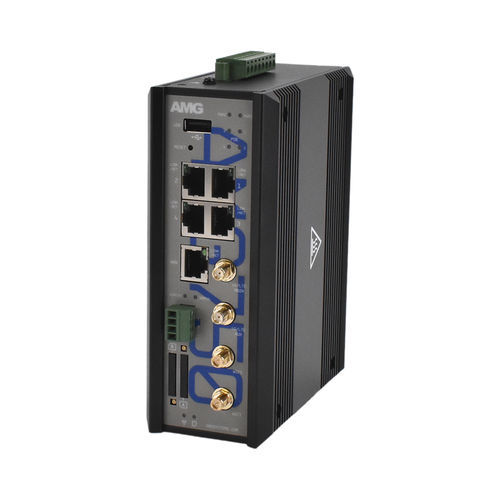

Cellular communication router AMG750-1G-4GAT-1E4-P120

datamanagedRS232

Industrial 4G/LTE Cat4 EU PoE Router 4 x 10/100/1000Base-T(x) RJ45 Ports with 802.3at 30W PoE, 1 x 10/100/1000Base-T(x) RJ45 WAN Port, WiFi, RS232/485 Serial, Dual SIM, DIN Rail Mount, -40°C to +75°C, 24-56VDC Power Input With Voltage Booster, e-Mark Certified For Use On Vehicles The AMG750 series Industrial Cellular Managed Router provides 5 x Gigabit Ethernet ports. 1 x Gigabit Ethernet port provides a configurable WAN connection while 4 x Gigabit Ethernet ports provide connection for remote devices and optional IEEE 802.3at 30W PoE+ support. An integrated dual SIM 4G/LTE Cat4 modem provides connection in remote deployment scenarios where a wired connection is not available and combined with the wired WAN port can also act in fail-over or load balancing modes. (Verizon, AT&T, PTCRB Certified) A dual band 2.4/5GHz wireless connection is also provided for local wifi access and supports 802.11 a/b/g/n/ac as well as a USB port supporting device logging functions. An RS232 or RS485 channel is provided to allow legacy serial data equipment to be connected at remote locations as well as a digital input and relay output for device monitoring and control applications. Dual power supply inputs are provided for the highest levels of system operation with a wide input range of 12-48 VDC supported on non-PoE models. PoE models feature voltage boosting technology ensuring that reliable PoE can be supplied to all 4 Ethernet ports when being powered by 24-56 VDC sources. The USA models are fully Verizon, AT&T and PTCRB Certified. The EU models are fully e-Mark certified for use on Vehicles.
