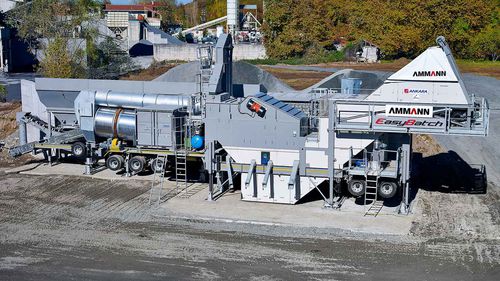

Discontinuous asphalt plant ABM EasyBatch

mobiletransportable

Overview
ABM EasyBatch provides the flexibility of a batch asphalt plant with high-mobility capabilities. The stand-alone plant fits onto trailers, can be installed without the assistance of a crane and is ready to produce within two days of a move. It is specifically designed for reliable production in remote regions with limited infrastructure. Traveling width: 3 m. Traveling height: 4.25 m.

Key data

• Production capacity: 90 - 140 t/h
• Maximum recycling rate: up to 30%
• Type: MOBILE
• Rapid relocation and setup; suitable for multiple relocations within a year

Technology
Ammann integrates automation and digital platforms to ensure precision and consistent quality. Systems support alternative fuels with low emissions, modular add-on options to expand capabilities, high RAP recycling solutions, warm-mix asphalt technologies, noise reduction and emission-control features to reduce environmental impact.

Specifications table
Model | Recycling System | Production Capacity 3% [t/h] | Dryer drum type / Burner | Filter type [surface m2] | Screen Type [N° Sel.] | Hot mineral silo capacity [t] | Mixer type / Batch capacity kg | Ready mix silo capacity [t]
ABM EasyBatch 90 | RAC | 90 | ES-1410/1650 / 6.5 MW | DMIF-220 [330 m2] | VA 1440 | - | 1'200 kg | -
ABM EasyBatch 140 | RAC | 140 | T-1770 / 10 MW | DMIF-275 [413 m2] | VA 1536 [4-5] | - | 1'700 kg | -

Characteristics / Technical specifications

• Models: ABM EasyBatch 90 and ABM EasyBatch 140
• Production capacity (range across models): 90 t/h (ABM EasyBatch 90) to 140 t/h (ABM EasyBatch 140)
• Recycling System: RAC (supports up to ~30% RAP)
• Dryer / Burner examples: ES-1410/1650 with 6.5 MW (90 model); T-1770 with 10 MW (140 model)
• Filter types: DMIF-220 (330 m2) for 90 model; DMIF-275 (413 m2) for 140 model
• Screen types: VA 1440 (90 model); VA 1536 [4-5] (140 model)
• Mixer / batch capacity: 1'200 kg (90 model); 1'700 kg (140 model)
• Traveling dimensions for transport: width 3.0 m, height 4.25 m
• Installation: trailer-transportable, crane-free installation capability, plant ready to produce within two days after relocation
• Design emphasis: compact design, efficient installation, plug-and-play setup and modular expandability
