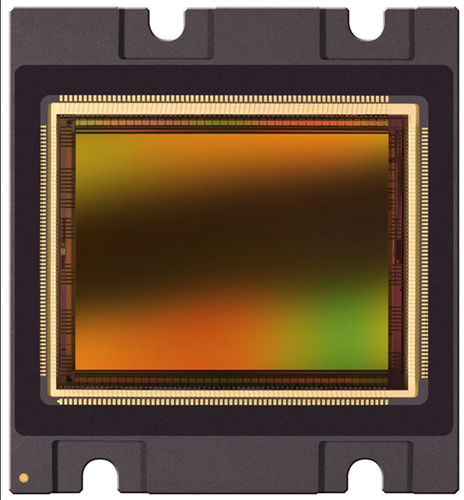

CMOS image sensor CMV20000

CMOS image sensor
CMOS image sensor
Add to favorites
Compare this product


Other characteristics
high-sensitivity, high-resolution


20MP global shutter CMOS image sensor for machine vision Features - 8T global shutter pixel with true Correlated Double Sampling (true-CDS) - Resolution of 5120x3840 at 30 frames per second - 35mm full frame optical format sensor Benefits - Capture fast moving objects - Designed for high performance applications - Capable of using standard optics Product parameters Resolution [MP]: 19.7 Pixel Size [µm]: 6.4 Optical Format /Size: 35mm Shutter Type: Global Frame Rate [fps]: 30 Output Interface​: LVDS 16x 480Mbps Option: Mono, RGB Package: 143p Ceramic PGA Special Features: Subsampling, HDR General Description The CMV20000 is a high sensitivity pipelined global shutter CMOS image sensor with a resolution of 5120 x 3840 pixels. Pipelining means that exposure during read out is possible. The state-of-the- art pixel design makes true correlated double sampling (CDS) possible which reduces the fixed pattern noise and dark noise significantly. The imager integrates 16 LVDS channels each running at 480Mbps resulting in a 30fps frame rate at full resolution (12 bits per pixel). Driving and read-out programming can be set over a serial peripheral interface. An internal timing generator produces the signals needed for read- out and exposure of the image sensor while external exposure triggering remains possible. The CMV20000 is derived from a custom CMOS image sensor. This sensor is not for sale for traffic applications.
