CMOS image sensor NanEye

CMOS image sensor
CMOS image sensor
CMOS image sensor
Add to favorites
Compare this product


CMOS, contact

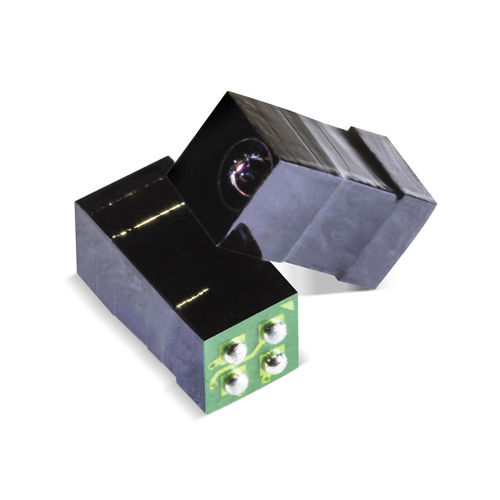

Miniature CMOS image sensor Features Footprint of 1mm x 1mm with 4 contact pads Frame rate of 43-62fps @ 249x250 resolution Possible to drive a signal through an endoscope of up to 3m Designed with a focus on cost efficiency 3-micron high sensitive pixel with 62k pixel resolution (125k for stereo module) Benefits Designed for the toughest confined space requirements Smooth and accurate image Reach further Affordable single use application Envision the unseen Product parameters Resolution [kP]: 62 Pixel Size [µm]: 3 Size [mm2]: 1 Shutter Type: Rolling Frame Rate [fps]: 62 Output Interface​: LVDS 1x 38Mbps Option: Mono, RGB Package: 2x2 SGA or module with cable Special Features: Module with integrated optics General Description NanEye is a miniature sized image sensor for applications where size is a critical factor. The ability of the camera head to drive a signal through a cable up to 3m makes this the ideal component for minimal diameter endoscopes. With a footprint of just 1mmx1mm, it features a 249x250 resolution with a high sensitive 3um x 3um rolling shutter pixel. The sensor has a high frame rate of about 43fps to 62fps adjustable over power supply. The sensor includes a 10bit ADC and a bit serial LVDS data interface. The data line is semi duplex, such that configuration can be communicated to the sensor in the frame brake.
