Full notch creep testing machine XQB 1 seriesmanualfor small samplesfor laboratories
Add to favorites
Compare this product
Characteristics
- Test type
- full notch creep
- Operating mode
- manual
- Test material
- for small samples
- Sector
- for laboratories, for research and development
- Technology
- electromechanical
- Configuration
- benchtop
- Other characteristics
- precision
Description

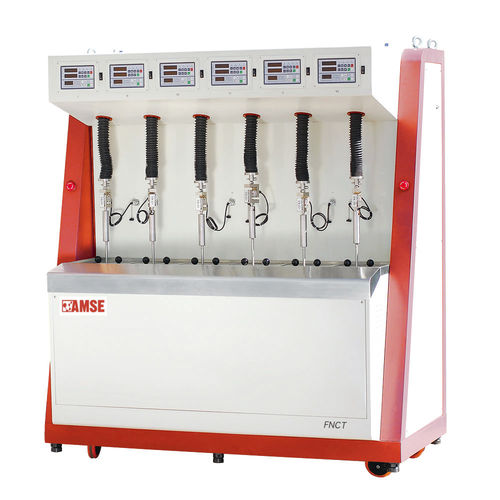

Full Notch Creep Tester Mod. XQB
Instrument is used to determine the resistance of polyethylene samples according to the standards ISO 16770, ISO 899, ISO 3501 and other equivalents.
Square cross section notch specimens are subjected to a static strenght effort. Then the instrument records the deformation of the specimen over time.
Features
Two versions are available: 3 stations (model XQB 1-3) and 6 stations (model XQB 1-6).
Strength and temperature are selectable for each test station. There is also an integrated self-diagnostic system.
The static load is applicable from 20N to 5000N for each individual station.
Testing temperature from ambient temperature up to 95˚C (thanks to the optional heating system).
