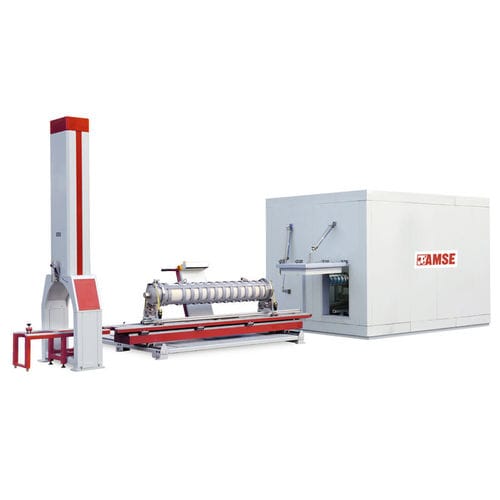

Rapid crack propagation tester RCP

for pipesR&D

Rapid Crack Propagation System used to determine critical pressure and temperature of the crack propagation on plastic pipes. It allows also to work at low temperatures through a thermostatic room. International Reference Standard: ISO 13477. Features Test units RCP - The system is composed by a tower from which is released an hummer that allows you to test the pipe with a variable speed from 1 m / s to 20 m / s - Touch Screen interface to set test parameters: conditioning time, sample temperature, pressure inside the pipe and speed of impact - Security system Thermostatic chamber - Equipped with pneumatic doors that allow a saving of time and energy during test run - Temperature of -30 ° can be reached in 10 minutes. - Chamber dimensions are customizable depending on the needs of the customer and according to the number of pipe samples which are to influence simultaneously. Sample shifting unit - System designed to enable the sample displacement from conditioning chamber to the test tower within 3 minutes from the specimen conditioning - Integrated monitor that provides information related to the tests
