Chemical product hose BW656 seriesfor gasfor steamstainless steel
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Use
- for chemical products, for gas, for steam
- Material
- stainless steel
- Applications
- conveying
- Other characteristics
- cryogenic, corrugated, welded
- Inner diameter
Min.: 6 mm
(0.236 in)Max.: 150 mm
(5.906 in)- Outer diameter
Min.: 9.8 mm
(0.386 in)Max.: 184.4 mm
(7.26 in)- Pressure
Min.: 0.7 bar
(10.153 psi)Max.: 172 bar
(2,494.649 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 600 °C
(1,112 °F)
Description

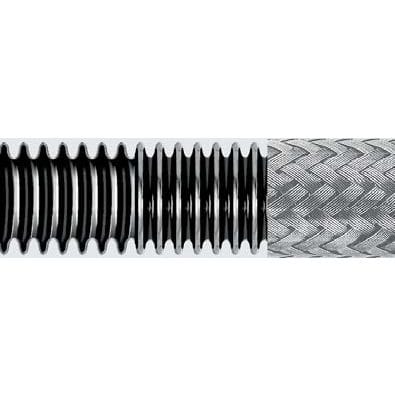

Anaconda butt welded corrugated stainless steel hose type BW656 is designed for conveying chemicals, gases, steam, etc. It is suitable for use under full vacuum and has a temperature range of cryogenic to ca. +600°C*. Type BW656 is designed for general purpose service and will meet most pressure requirements. It has a good flexibility and a good flexural strength, suitable for 0rmal industrial vibrations.
