High-performance fan AIRHANG

low-noiseorientablefor air circulation

Summary

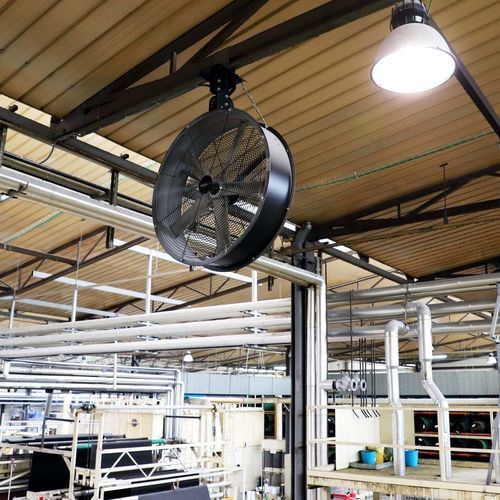

The AIRHANG suspended directional fan is designed for transit spaces such as long corridors and passageways where ceiling installation is not feasible. Its suspended mounting focuses airflow for targeted ventilation while maintaining low noise levels. Includes an adjustable support allowing up to 30° orientation and a brushless (BLDC) motor.

Available variants

• Diameter Ø 0.85 m
• Diameter Ø 1.15 m

Key features

• Suspended mounting with 30° adjustable support
• Brushless (BLDC) motor
• Designed to direct air in corridors, tunnels and narrow transit zones
• Low-noise, energy-efficient operation

Specifications by variant

• Ø 0.85 m version: Power 500 W; Max speed 700 rpm; Airflow 16,800 m³/h; Coverage 56 m²; Weight 61 kg; Supply 220–380 V AC, 50/60 Hz.
• Ø 1.15 m version: Power 700 W; Max speed 450 rpm; Airflow 25,200 m³/h; Coverage 84 m²; Weight 73 kg; Supply 220–380 V AC, 50/60 Hz.

Additional technical description

• Application: directional fan for industrial and high-traffic transit areas where ceiling mounting is not possible.
• Support: adjustable bracket permitting up to 30° orientation to steer airflow.
• Recommended use: corridors, passages, tunnels and other narrow spaces requiring concentrated directed airflow.

Characteristics / technical specifications

• Model: AIRHANG
• Diameters: 0.85 m and 1.15 m
• Power: 500 W (Ø 0.85 m) / 700 W (Ø 1.15 m)
• Voltage: 220–380 V AC
• Frequency: 50/60 Hz
• Motor: BLDC (brushless)
• Max speed: 700 rpm (Ø 0.85 m) / 450 rpm (Ø 1.15 m)
• Airflow: 16,800 m³/h (Ø 0.85 m) / 25,200 m³/h (Ø 1.15 m)
• Estimated coverage: 56 m² (Ø 0.85 m) / 84 m² (Ø 1.15 m)
• Weight: 61 kg (Ø 0.85 m) / 73 kg (Ø 1.15 m)
• Mounting: suspended, 30° adjustable support
• Suitable for: directing airflow in long, narrow transit areas
