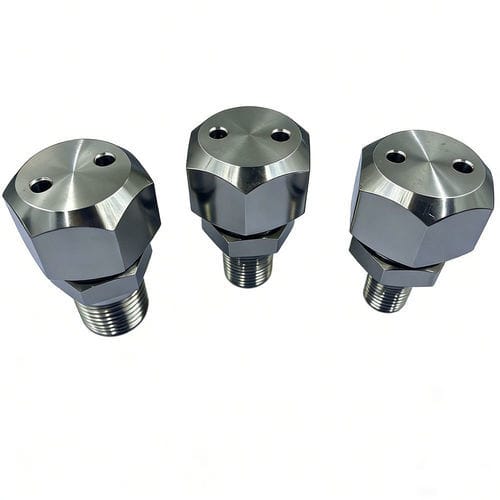

Grease valve X-750

for oilfor gasstainless steel

Interface Specifications: 1/2-14NPT, 3/8-18NPT, 1/4-18NPT, non-standard customization accepted
Product Type: Vented Cap Body Grease Fittings
Body Material: Stainless Steel 316, 304; non-standard customization accepted
Spring Material: INCONEL X-750
Performance Specifications:
High water pressure test: 35–135 MPa for 2 minutes
Air pressure test: 0.6–0.8 MPa for 2 minutes
Working Medium: Petroleum, natural gas, water
Product Structure: Hard-sealed ball valve
Place of Origin: Suzhou, China
Brand: AJL
Ball Material: YG6 tungsten carbide alloy
Operating Pressure: ≤ 10,000 PSI
Operating Temperature: -50°C to 200°C

Product Introduction
AJL Vented Cap Grease Valve | Hard Seal High Pressure Grease Valve | Grease Injector Valve for Wellhead Equipment | Oil & Gas Grease Valve

Brief Description
AJL Vented Cap Grease Valve (hard-seal ball structure) is designed for high-pressure lubrication and sealing maintenance of ball valves, gate valves and wellhead equipment in oil, gas and water treatment industries. It features 316/304SS body, INCONEL X‑750 spring, YG6 tungsten carbide ball, working pressure up to 10000 PSI, operating temperature -50℃ to 200℃. Standard connections: 1/2-14NPT, 3/8-18NPT, 1/4-18NPT. Customizable, positive flow structure available for efficient and reliable lubrication.
Detailed Description
AJL Vented Cap Grease Valve (hard-seal ball type) is a high-pressure lubrication fitting specially designed for the oil, natural gas and water treatment industries. It is widely used for lubrication and sealing of ball valves, gate valves and wellhead equipment.

Key Advantages

High-Performance Materials
Body: 316SS / 304SS stainless steel. Spring: INCONEL X-750. Ball: YG6 tungsten carbide alloy. Excellent corrosion resistance and wear resistance, stable in temperatures from -50℃ to 200℃.

High Pressure & Stable Sealing
Hard-seal ball structure, rated working pressure up to 10000 PSI (68.9MPa). Passed hydrostatic test (35–135MPa / 2min) and air pressure test (0.6–0.8MPa / 2min), ensuring zero leakage under severe conditions.

Optimized Structure
Vented cap design prevents impurities from entering the grease passage. Positive flow structure improves grease injection efficiency and flow performance.

Wide Compatibility
Standard NPT connections include 1/2-14NPT, 3/8-18NPT, 1/4-18NPT. Non-standard customization is available to match various equipment requirements.

Applications
Widely used in oil extraction, natural gas transmission, water treatment and other industries for lubrication and maintenance of key valves and wellhead equipment, ensuring long-term stable operation under harsh working conditions.

Brand & Origin
AJL Brand, manufactured in Suzhou, China. With professional machining and strict quality inspection, we provide reliable valve accessories for global oil & gas and water treatment industries.
